20182204 Right Angle Shafts

LEESON LEESON

M1125080.00

Description

M1125080

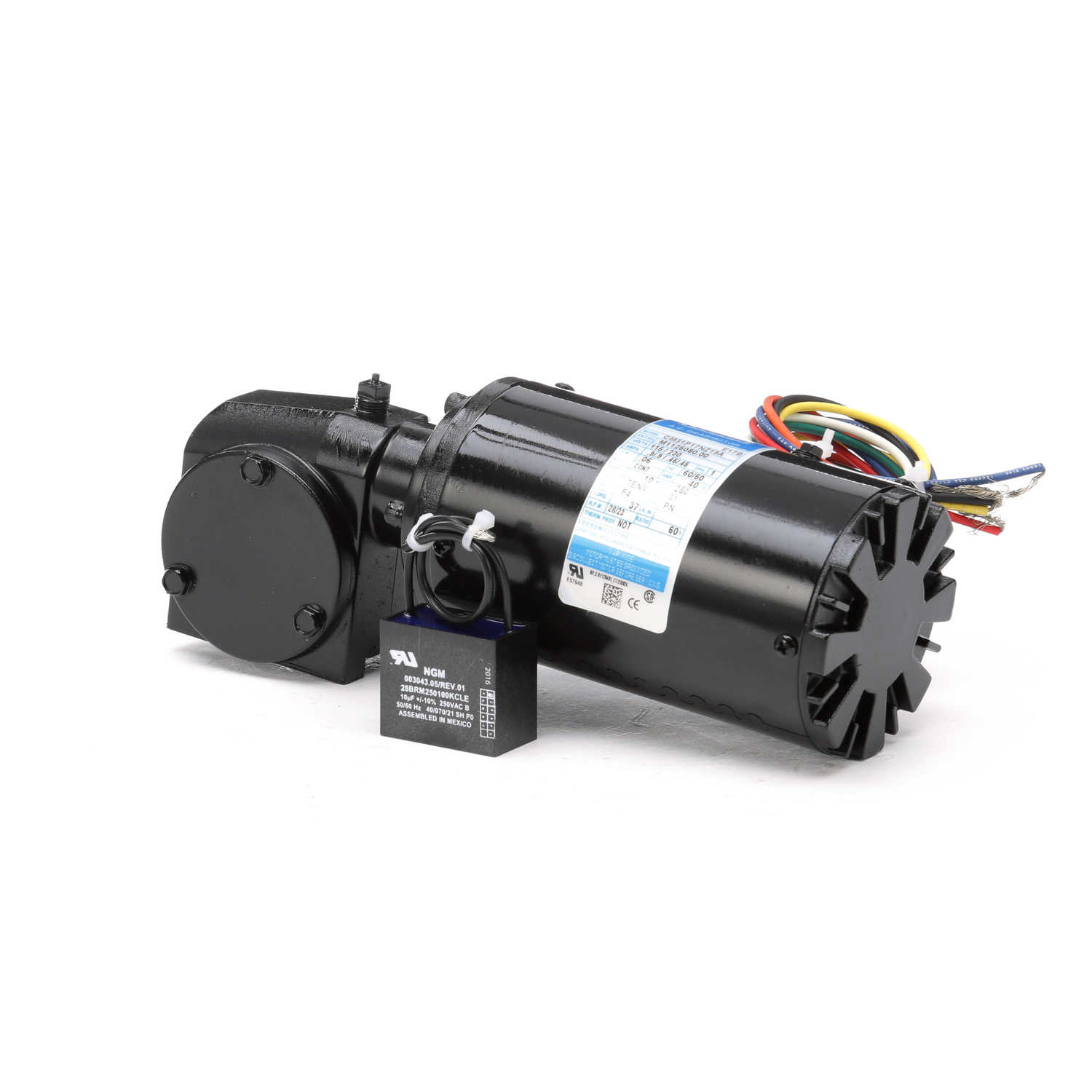

Gear Unit; Right Angle; 60:1 Ratio; 31-C; Motor Input Type; Right Hand Output Type; Direct Mounted; Worm; 10 Series

Part #

M1125080.00

BDI #
20182204

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

429.79839999999996 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 429.80 / each
$ 812.00 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Right Angle Shafts
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
EAN
0691720091180
Weight / US pound
0.01
Product Group - BDI
M04104
Reducer Type
Right Angle
Nominal Ratio
60:1
Mounting Frame
31-C
Input Type
Motor
Output Type
Right Hand
Motor Included
Yes
Nominal Max Input Rating
Gear Motor
Nominal Max Output RPM
29.2
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
28
Gearing
Worm
Manufacturer's Series
10
Mounting Position
Floor
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
185Lbs
Base Included
No
Input Rating value plus um
Gear Motor
Housing Material And Finish
Aluminum
Output Torque
37In-Lbs
Fan Cooling
No
Other Features
Permanent Split Capacitor Design | Optional Base Mount | Optional Conduit Box
Motor HP, KW if motor included
0.067HP
Motor Frame Size if motor included
31-C
Motor Enclosure if motor included
TENV
Motor Voltage if motor included
115/230VAC
Motor Phase if motor included
Single
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8501.51.20.20
Noun
Gear Unit
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
M1125080.00
Weight / LBS
9
Long Description
Gear Unit; Right Angle; 60:1 Ratio; 31-C; Motor Input Type; Right Hand Output Type; Direct Mounted; Worm; 10 Series
Nominal Center Distance
1 Inch | 25.4 Millimeter
Overall Height
3.84 Inch | 97.536 Millimeter
Center Distance
1 Inch | 25.4 Millimeter
Base to Center of Input Shaft
2.3 Inch | 58.42 Millimeter
Bolt Hole Diameter
0.25 Inch | 6.35 Millimeter
Output Shaft Length
1.3 Inch | 33.02 Millimeter
Output Shaft Diameter
0.5 Inch | 12.7 Millimeter
Base to Center of Output Shaft
1.3 Inch | 33.02 Millimeter
Overall Length
8.94 Inch | 227.076 Millimeter
