F039015.AWAT03 https://www.bdiexpress.com/medias/INDCNDSPDRED-RA-F-039-AW-T-300x300.jpg?context=bWFzdGVyfHJvb3R8MTY2MjZ8aW1hZ2UvanBlZ3xhRFUzTDJoaE9TODVPREl4T1RjM01qZ3dOVFF5TDBsT1JFTk9SRk5RUkZKRlJGOVNRVjlHWHpBek9WOUJWMTlVWHpNd01IZ3pNREF1YW5Cbnw0ZTlmMmNjOTFmM2RmMzNmZWQ1Mjg5ZDc5OTk0MWZlNjczNDAzYzc4ZmQyNWMzYjAzZGRhZjc2YjRlMTdmOTRh
22975974 Right Angle Shafts

CONE DRIVE CONE DRIVE

F039015.AWAT03

Description

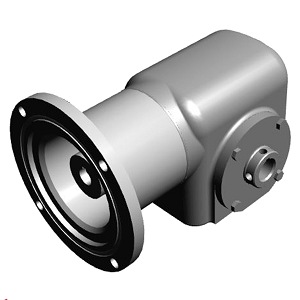

F039015.AWAT03 WORM GEAR REDUCER ; NON-RETURNABLE

Speed Reducer; Right Angle; 15:1 Ratio; 56C; C-Face Quill Input Type; Hollow Shaft Output Type; Direct Mounted; Worm; F Series; 0.63" Input Shaft Diameter

Part #

F039015.AWAT03-

BDI #
22975974

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1134.0197 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 1,134.02 / each
$ 1,187.00 / each BDIExpress
QTY

Inventory

Total: 1

Category
Right Angle Shafts
Brand
CONE DRIVE
Manufacturer Name
TIMKEN CONEDRIVE.COM
Minimum Buy Quantity
N/A
Weight / Kilogram
0
EAN
0766234524483
Product Group - BDI
M02282
Tradename
ACCUDRIVE
Reducer Type
Right Angle
Nominal Ratio
15:1
Mounting Frame
56C
Input Type
C-Face Quill
Output Type
Hollow Shaft
Motor Included
No
Nominal Max Input Rating
1.5HP
Nominal Max Output RPM
116.7
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
116.667
Gearing
Worm
Manufacturer's Series
F
Mounting Position
Universal
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
450Lbs
Base Included
No
Input Rating value plus um
1.5HP
Housing Material And Finish
Stainless Steel
Output Torque
715In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Unit to Allow Fitting of Motor | Standard Unit | 88 Percentage Efficiency | IP69K Ingress Protection | -22 To 200 Degree F Operating Temperature
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://conedrive.com
Weight / LBS
26
Long Description
Speed Reducer; Right Angle; 15:1 Ratio; 56C; C-Face Quill Input Type; Hollow Shaft Output Type; Direct Mounted; Worm; F Series; 0.63" Input Shaft Diameter
Overall Width
6.5 Inch | 165.1 Millimeter
Output Bore
1 Inch | 25.4 Millimeter
Center Distance
1.54 Inch | 39.116 Millimeter
Overall Length
9.49 Inch | 241.046 Millimeter
Input Shaft Diameter
0.63 Inch | 16 Millimeter
Base to Center of Input Shaft
3.45 Inch | 87.63 Millimeter
Base to Center of Output Shaft
1.91 Inch | 48.514 Millimeter
Bolt Hole Diameter
0.315 Inch | 8 Millimeter
Overall Height
6.7 Inch | 170.18 Millimeter
Nominal Center Distance
1.54 Inch | 39.116 Millimeter
