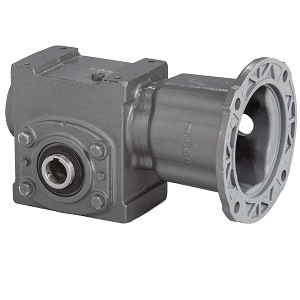

23AZ20HA14 https://www.bdiexpress.com/medias/INDDODSPDRED-TGR2EZ-RA-CPG-HS-BM-1-300x300.jpg?context=bWFzdGVyfHJvb3R8MTc5NTB8aW1hZ2UvanBlZ3xhRGMwTDJoaE1TODVPVFExTlRRd01ETTBOVGt3TDBsT1JFUlBSRk5RUkZKRlJGOVVSMUl5UlZwZlVrRmZRMUJIWDBoVFgwSk5YekZmTXpBd2VETXdNQzVxY0djfGM1MTJjNjJjNjk1ODJhYTM2MmYyMDU1YWVjNzE3ZjEyMjdjMjA3NTc2MjMyMzk0MzgxOTM4YzNmM2UxZTk5Mjc
269944 Right Angle Shafts

DODGE DODGE

23AZ20HA14

Description

23AZ20HA14 TIGEAR-2 E-Z KLEE ; NON RETURNABLE

Speed Reducer; Right Angle; 20:1 Ratio; 143TC/145TC; C-Face Coupling Input Type; Bushed Output Type; Direct Mounted; Worm; 23 Series; 7/8" Input Shaft Diameter

Part #

23AZ20HA14

BDI #
269944

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1617.409 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 1,617.41 / each BDIExpress
QTY

Inventory

Total: 1

Category
Right Angle Shafts
Brand
DODGE
Manufacturer Name
ABB MOTORS AND MECHANICAL INC
Minimum Buy Quantity
N/A
Weight / Kilogram
26.79
EAN
0782476062668
Product Group - BDI
M02282
Tradename
TIGEAR-2 E-Z KLEEN
Reducer Type
Right Angle
Nominal Ratio
20:1
Mounting Frame
143TC/145TC
Input Type
C-Face Coupling
Output Type
Bushed
Motor Included
No
Nominal Max Input Rating
2HP
Nominal Max Output RPM
87.5
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
88
Gearing
Worm
Manufacturer's Series
23
Mounting Position
Floor | Wall | Ceiling
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
1610Lbs
Base Included
No
Input Rating value plus um
2HP
Housing Material And Finish
Class 30 Gray Iron
Output Torque
1178In-Lbs
Fan Cooling
No
Other Features
Single Reduction | Without Bushing | Washdown Duty | Totally Enclosed Non-Vented Sealing | Maximum Bore Required No Bushing
Inch - Metric
Inch
Category - BDI
Reducers Right Angle
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Worm
Manufacturer URL
https://dodgeindustrial.com
Manufacturer Item Number
TIGEAR-2 E-Z KLEEN REDUCER
Manufacturer Internal Number
23AZ20HA14
Weight / LBS
59
Long Description
Speed Reducer; Right Angle; 20:1 Ratio; 143TC/145TC; C-Face Coupling Input Type; Bushed Output Type; Direct Mounted; Worm; 23 Series; 7/8" Input Shaft Diameter
Overall Height
8.08 Inch | 205.232 Millimeter
Input Shaft Diameter
0.875 Inch | 22.225 Millimeter
Center Distance
2.31 Inch | 58.674 Millimeter
Bolt Hole Diameter
0.375 Inch | 9.525 Millimeter
Input Shaft Length
1.17 Inch | 29.718 Millimeter
Overall Length
12.25 Inch | 311.15 Millimeter
Output Bore Range
1 To 1-1/2 Inch | 25.4 To 38.1 Millimeter
Nominal Center Distance
2.31 Inch | 58.674 Millimeter
Base to Center of Output Shaft
2.5 Inch | 63.5 Millimeter
Overall Width
6.62 Inch | 168.148 Millimeter
Base to Center of Input Shaft
4.81 Inch | 122.174 Millimeter
Output Bore
1.5 Inch | 38.1 Millimeter
