358809 Parallel Shafts

BROWNING BROWNING

107SMTP25

Descripción

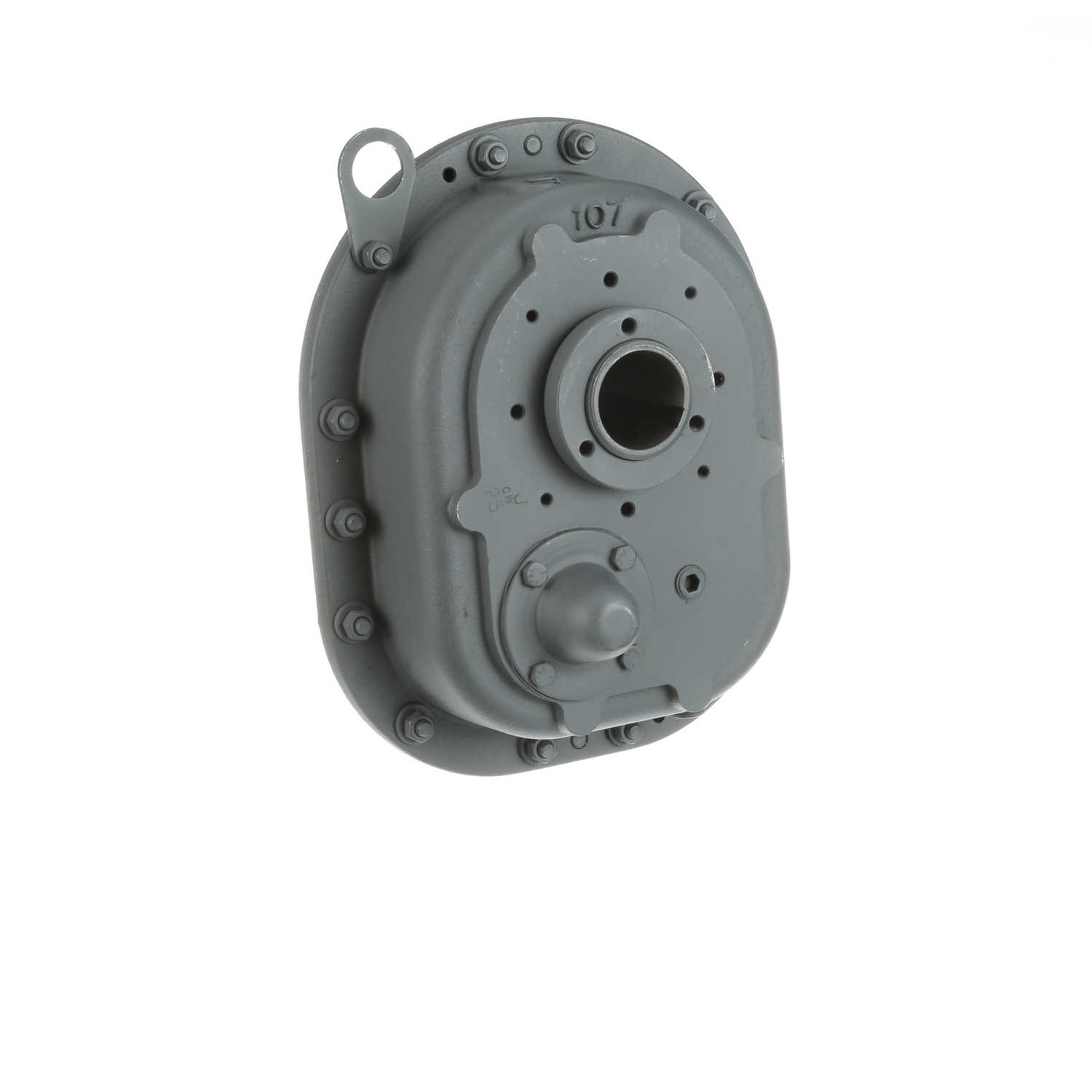

107SMTP25 SHAFT MOUNT REDUCER ; BROW SMTP SHAFT MT

Speed Reducer; TORQTAPER PLUS; Parallel; 25:1 Ratio; Not Applicable Frame; Shaft Input Type; Bushed Output Type; 70 Output RPM; Direct Mounted; Helical

No parte

PB0004

Nº de pieza de BDI
358809

ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov

Detalles

1595.99 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Su precio $ 1,595.99 / each
$ 3,474.00 / each BDIExpress
CTD

Inventario

Total: Consulte disponibilidad

Categoría
Parallel Shafts
Marca
BROWNING
Nombre del fabricante
REGAL BELOIT
Cantidad mínima de compra
No disponible
Peso / Kilogram
24.516
EAN
0662288909972
Product Group - BDI
M02282
Tradename
TORQTAPER PLUS
Reducer Type
Parallel
Nominal Ratio
25:1
Mounting Frame
Not Applicable
Input Type
Shaft
Output Type
Bushed
Motor Included
No
Nominal Max Input Rating
Not Available
Nominal Max Output RPM
70
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
70
Gearing
Helical
Manufacturer's Series
SMTP
Maximum Overhung load value And um
1890Lbs
Base Included
No
Input Rating value plus um
1HP
Output Bushing Part Number
107TBP
Housing Material And Finish
Cast Iron
Output Torque value plus um
900.34In-Lbs
Fan Cooling
No
Other Features
Double Reduction
Inch - Metric
Inch
Category - BDI
Reducers Parallel Shaft
Harmonized Tariff Code
8483.40.10.00
Noun
Reducer
Keyword String
Speed Helical
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Internal Number
PB0004
Weight / LBS
54
Long Description
Speed Reducer; TORQTAPER PLUS; Parallel; 25:1 Ratio; Not Applicable Frame; Shaft Input Type; Bushed Output Type; 70 Output RPM; Direct Mounted; Helical
Overall Height
12.07 Inch | 306.578 Millimeter
Overall Length
11.07 Inch | 281.178 Millimeter
Output Bore Range
3/4 To 1-7/16 Inch | 19.05 To 36.513 Millimeter
Center Distance
3.77 Inch | 95.758 Millimeter
Input Shaft Length
4.08 Inch | 103.632 Millimeter
Output Bore
1.438 Inch | 36.525 Millimeter
Input Shaft Diameter
0.75 Inch | 19.05 Millimeter
Nominal Center Distance
3.77 Inch | 95.758 Millimeter
Overall Width
9.76 Inch | 247.904 Millimeter
Bolt Hole Diameter
0.375 Inch | 9.525 Millimeter
