20187532 Parallel Shafts

LEESON LEESON

107037.00

Description

107037

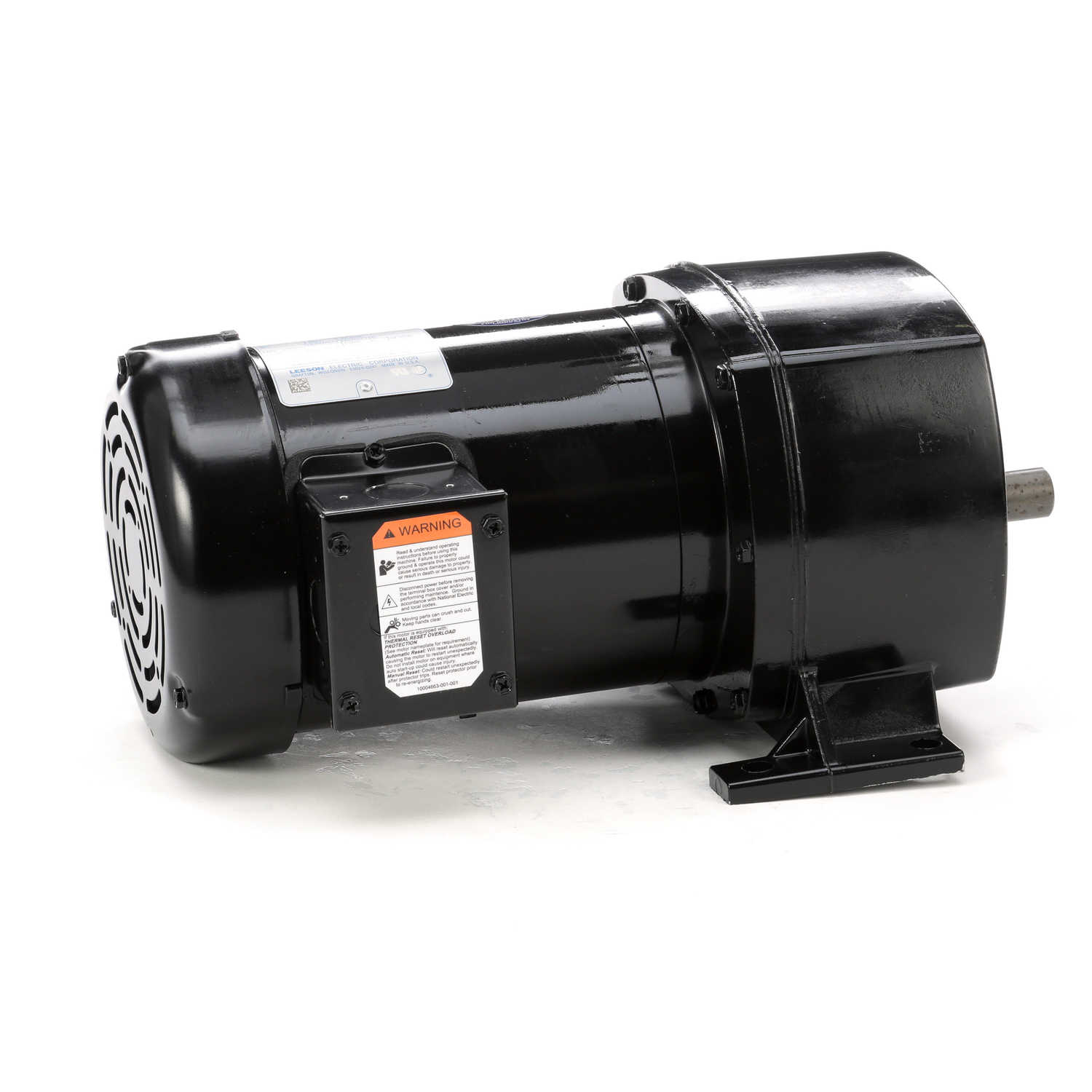

Gear Unit; Parallel; 6:1 Ratio; 48 Frame; Motor Input Type; Shaft Output Type; 288 Output RPM; Direct Mounted; Helical-Spur

Part #

107037.00

BDI #
20187532

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

781.7803 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 781.78 / each
$ 1,477.00 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Parallel Shafts
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
EAN
0691720006580
Weight / US pound
0.01
Product Group - BDI
M04104
Reducer Type
Parallel
Nominal Ratio
6:1
Mounting Frame
48
Input Type
Motor
Output Type
Shaft
Motor Included
Yes
Nominal Max Input Rating
Gear Motor
Nominal Max Output RPM
291.7
Mounting Method
Direct Mounted
Output RPM at 1750 RPM Input
288
Gearing
Helical-Spur
Manufacturer's Series
P1100
Mounting Position
Floor
Mounting Bolt Pattern footprint
Rectangular
Maximum Overhung load value And um
400Lbs
Base Included
Yes
Input Rating value plus um
Gear Motor
Housing Material And Finish
Die Cast Aluminum
Output Torque value plus um
100In-Lbs
Fan Cooling
No
Other Features
Fractional HP | Rugged Housing | With Conduit Box
Motor HP, KW if motor included
0.5HP
Motor Frame Size if motor included
48
Motor Enclosure if motor included
TEFC
Motor Voltage if motor included
230/460VAC
Motor Phase if motor included
Three
Inch - Metric
Inch
Category - BDI
Reducers Parallel Shaft
Harmonized Tariff Code
8501.51.20.20
Noun
Gear Unit
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
107037.00
Weight / LBS
31
Long Description
Gear Unit; Parallel; 6:1 Ratio; 48 Frame; Motor Input Type; Shaft Output Type; 288 Output RPM; Direct Mounted; Helical-Spur
Center Distance
0.36 Inch | 9.144 Millimeter
Overall Length
13.42 Inch | 340.868 Millimeter
Output Shaft Length
1.5 Inch | 38.1 Millimeter
Overall Height
6.6 Inch | 167.64 Millimeter
Base to Center of Output Shaft
3 Inch | 76.2 Millimeter
Overall Width
8.895 Inch | 225.933 Millimeter
Bolt Hole Diameter
0.44 Inch | 11.176 Millimeter
Base to Center of Input Shaft
3.36 Inch | 85.344 Millimeter
Nominal Center Distance
0.36 Inch | 9.144 Millimeter
Output Shaft Diameter
0.75 Inch | 19.05 Millimeter
