320686 Spur and Helical Gears

BROWNING BROWNING

NCS872

Description

NCS872 ; OPEN GEARING

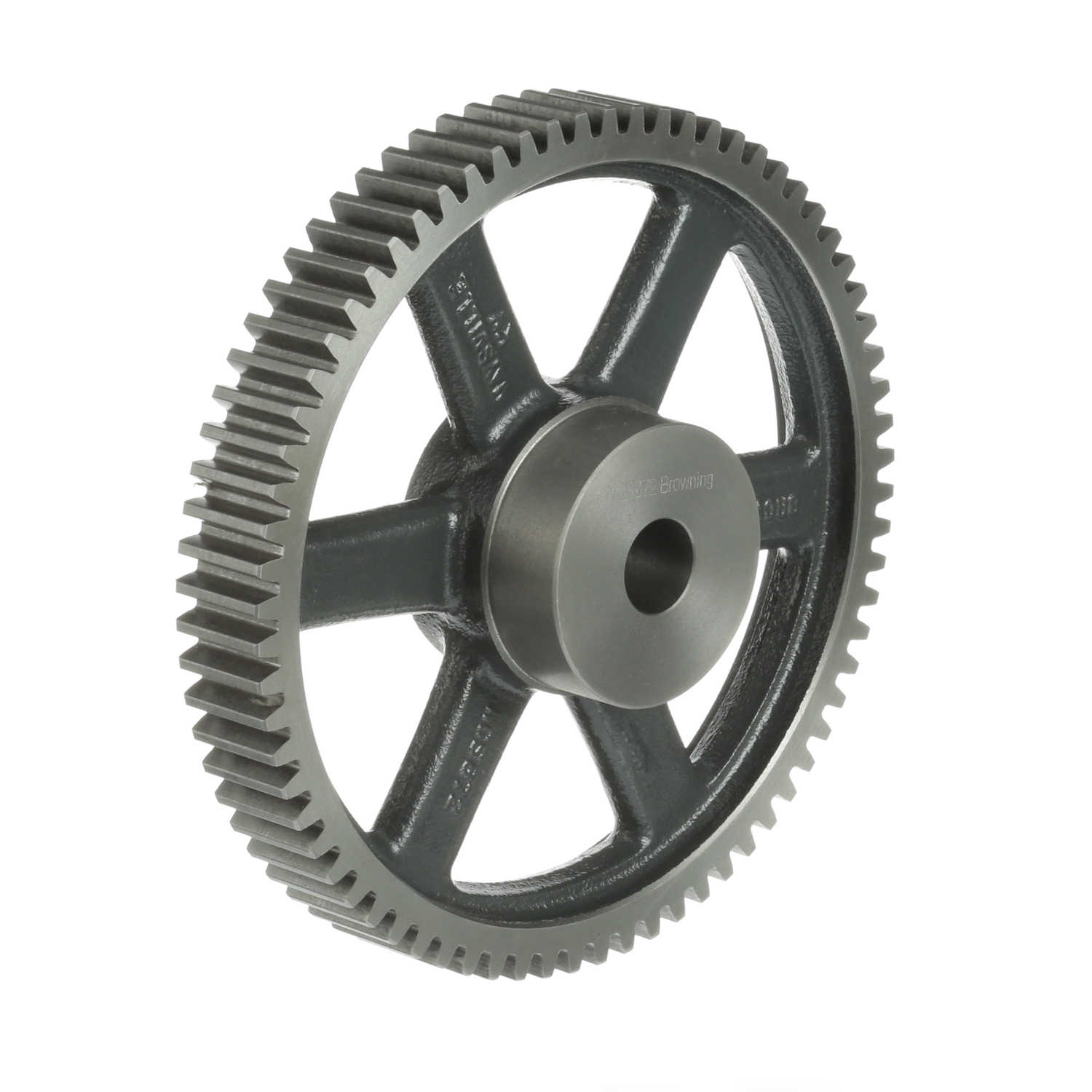

Spur Gear; 9" Pitch Diameter; 8 DP; 1-1/4" Face Width; Rough Bore; 72 Teeth; 14.5 Pressure Angle; No Bushing; Minimum Plain Bore; 1.813" Max Bore; 3" Hub Diameter; Cast Iron; No Hardened Teeth

Part #

1212539

BDI #
320686

Details

539.18 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 539.18 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Spur and Helical Gears
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
UNSPSC
31171707
Weight / Kilogram
5.04
EAN
0662289213832
Product Group - BDI
M02182
Pitch
8 DP
Mounting Method
Rough Bore
Number of Teeth
72
Pressure Angle
14.5
Direction
Not Applicable
Bushing Size if bushed
No Bushing
Minimum Plain Bore
Yes
Max Bore
1.813
Gear Style
Spur Gear
Material
Cast Iron
Hardened Teeth
No
Inch - Metric
Inch
Other Features
Type 4 | Minimum Bore 1
Category - BDI
Spur and Helical Gears
Harmonized Tariff Code
8483.40.90.00
Noun
Gear
Keyword String
Spur
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1212539
Long Description
Spur Gear; 9" Pitch Diameter; 8 DP; 1-1/4" Face Width; Rough Bore; 72 Teeth; 14.5 Pressure Angle; No Bushing; Minimum Plain Bore; 1.813" Max Bore; 3" Hub Diameter; Cast Iron; No Hardened Teeth
Bore
0 Inch | 0 Millimeter
Hub Diameter
3 Inch | 76.2 Millimeter
Face Width
1.25 Inch | 31.75 Millimeter
Pitch Diameter
9 Inch | 228.6 Millimeter
