321234 Miter and Bevel Gears

BROWNING BROWNING

YSM10F20X5/8

Description

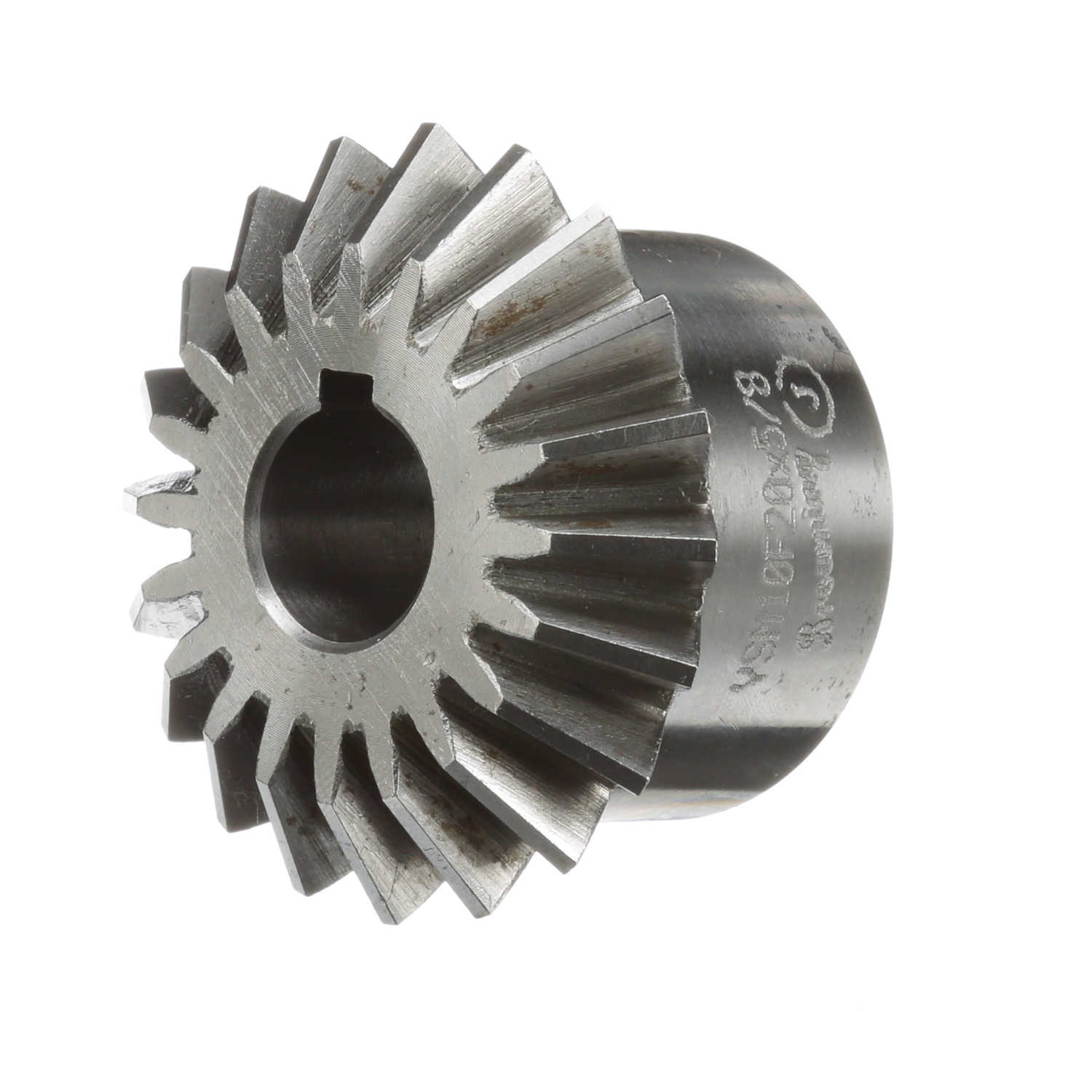

YSM10F20X5/8 BEVEL/MITER GEAR ; 5/8" BORE 2" PITCH DIA 10 DP PITCH

Miter Gear; 5/8" Bore; 2" Pitch Dia; 10 DP; 0.44" Face Width; Finished Bore; 20 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 1-5/8" Hub Dia; Straight Tooth; Steel

Part #

1229491

BDI #
321234

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

62.83 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 62.83 / each
$ 169.60 / each BDIExpress
QTY

Inventory

Total: 10

Category
Miter and Bevel Gears
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
UNSPSC
31171708
Weight / Kilogram
0.32
EAN
0662289147069
Product Group - BDI
M02182
Pitch
10 DP
Mounting Method
Finished Bore
Number of Teeth
20
Pressure Angle
20 Degree
Bushing Size if bushed
No Bushing
Minimum Plain Bore
No
Max Bore
0
Gear Style
Miter Gear
Tooth Profile
Straight Tooth
Spiral Angle
Not Applicable
Material
Steel
Direction
Not Applicable
Hardened Teeth
No
Inch - Metric
Inch
Other Features
Unhardened Overall | Coniflex Tooth Form | With Keyway and Set Screw
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Internal Number
1229491
Long Description
Miter Gear; 5/8" Bore; 2" Pitch Dia; 10 DP; 0.44" Face Width; Finished Bore; 20 Teeth; 20 Degree Pressure Angle; No Bushing; No Minimum Plain Bore; 1-5/8" Hub Dia; Straight Tooth; Steel
Bore
0.625 Inch | 15.875 Millimeter
Pitch Diameter
2 Inch | 50.8 Millimeter
Face Width
0.44 Inch | 11.176 Millimeter
Hub Diameter
1.625 Inch | 41.275 Millimeter
