M1020BR X 1/2IN RSB BRZ https://www.bdiexpress.com/medias/INDM-GGEARXX-MTR-M-RSB-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8MjExODh8aW1hZ2UvanBlZ3xhR1l5TDJobE5TODVPVFEyT1RNd01EZzFPVEU0TDBsT1JFMHRSMGRGUVZKWVdGOU5WRkpmVFY5U1UwSmZRbEpUWHpNd01IZ3pNREF1YW5CbnwwN2Q4ZTQxYTEyNGE2MmFjZGYxOWRkNzdkZGQ3NmFiMmMwOTI4MTE4YzZjYzA0Yzk3ZjhiNTViMzQ1MTQ0Y2Vm
24556545 Miter and Bevel Gears

MARTIN SPROCKET & GR MARTIN SPROCKET & GR

M1020BR X 1/2IN RSB BRZ

Description

M1020BR X 1/2IN RSB BRZ CHAIN SPROCKET

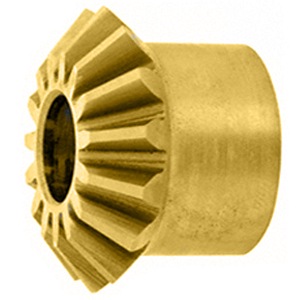

Miter Gear; 2" Pitch Dia; 10 DP; 0.44" Face Width; Rough Bore; 20 Teeth; 20 Degree Pressure Angle; Minimum Plain Bore; 0.939" Max Bore; 1-5/8" Hub Dia; Straight Tooth; Brass

Part #

M1020BR X 1/2IN RSB BRZ

BDI #
24556545

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

Request A Price USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Miter and Bevel Gears
Brand
MARTIN SPROCKET & GR
Manufacturer Name
MARTIN SPROCKET & GEAR
Minimum Buy Quantity
N/A
Weight / Kilogram
0
Product Group - BDI
M02182
Pitch
10 DP
Mounting Method
Rough Bore
Number of Teeth
20
Pressure Angle
20 Degree
Bushing Size if bushed
No Bushing
Minimum Plain Bore
Yes
Max Bore
0.939
Gear Style
Miter Gear
Tooth Profile
Straight Tooth
Spiral Angle
Not Applicable
Material
Brass
Direction
Not Applicable
Hardened Teeth
No
Inch - Metric
Inch
Other Features
1/2" Minimum Plain Bore
Category - BDI
Miter and Bevel Gears
Harmonized Tariff Code
8483.40.90.00
Noun
Gear
Keyword String
Bevel
Manufacturer URL
https://www.martinsprocket.com
Weight / LBS
0.72
Long Description
Miter Gear; 2" Pitch Dia; 10 DP; 0.44" Face Width; Rough Bore; 20 Teeth; 20 Degree Pressure Angle; Minimum Plain Bore; 0.939" Max Bore; 1-5/8" Hub Dia; Straight Tooth; Brass
Face Width
0.44 Inch | 11.176 Millimeter
Hub Diameter
1.625 Inch | 41.275 Millimeter
Pitch Diameter
2 Inch | 50.8 Millimeter
Bore
0 Inch | 0 Millimeter
