BROWNING
BROWNING
1VP34X14MM
BROWNING BROWNING
Description

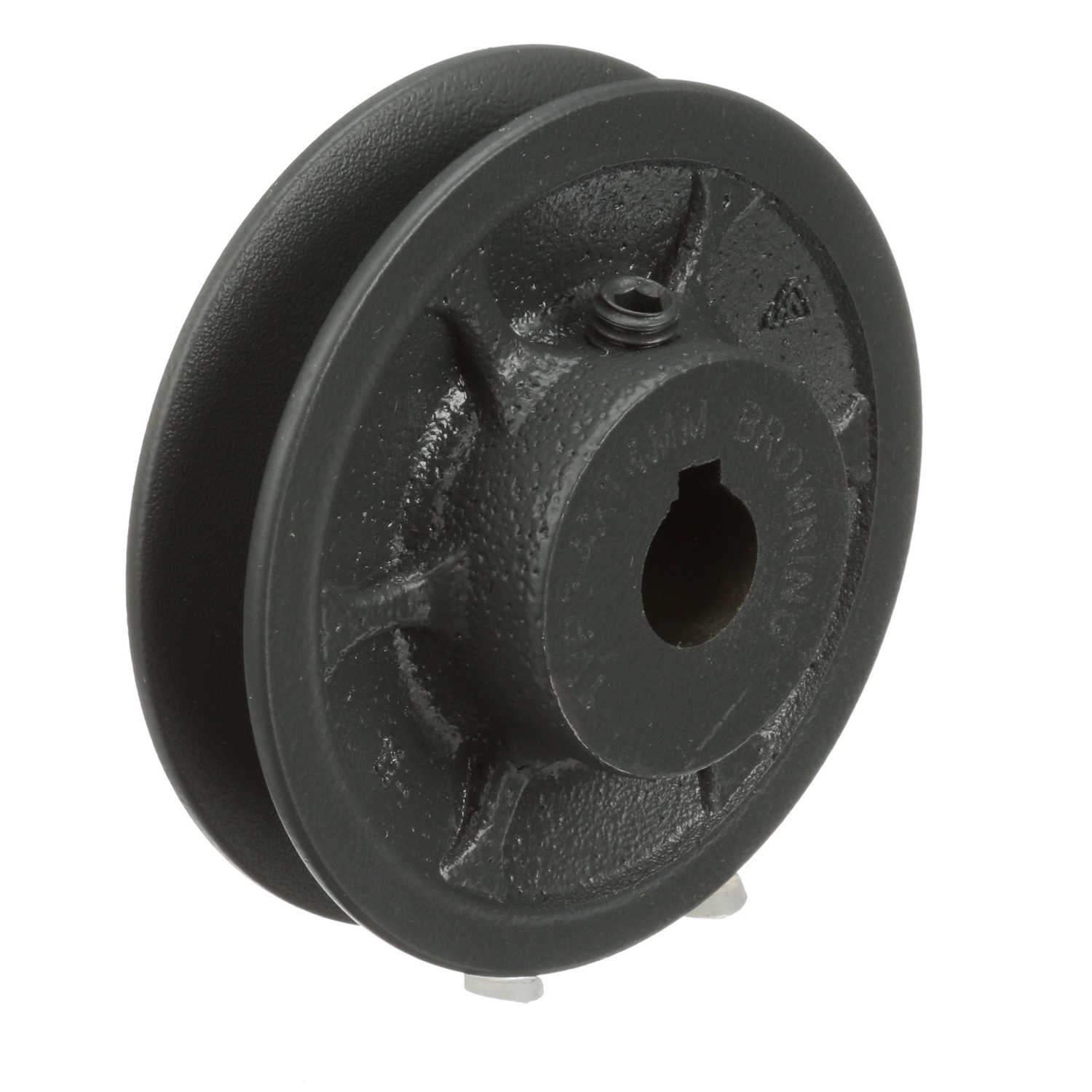

1VP34X14MM VARIABLE SPEED SHEAVE ; 1VP 2VP NON RETURNABLE
Variable Speed Pulley; 14MM Bore; 1 Grooves; 80.01MM Outside Diameter; Finished Bore; No Bushing; 9.525MM Belt Width Min; 9.525MM Belt Width Max; 3L | 4L | A | 5L | B Belt Series; 16.662MM Pitch Dia Min; 43.18MM Pitch Dia Max; 81.28MM Face Wid Min; 17.475MM Face Wid Max; Keyway; Manual Turn Adjustmen
Part #
2773307
BDI #
19067411

Details
50.1198
USD
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/us/en/Mechanical-Power-Transmission/Belt-Drives/Sheaves-and-Pulleys/Sheaves---Variable-Speed/1VP34X14MM/p/19067411
Your Price
$ 50.12 / each
$ 128.61 / each BDIExpress
$ 128.61 / each BDIExpress
|
Specifications
Category
Minimum Buy Quantity
N/A
UNSPSC
31171804
Weight / Kilogram
0.545
EAN
0662460620688
Product Group - BDI
M02354
Belt Series
3L | 4L | A | 5L | B
Number of Grooves
1
Mounting Method
Finished Bore
Bushing Size
No Bushing
Keyway Yes/No
Yes
Adjustment Method
Manual Turn
Other Features
Cast Iron Material
Inch - Metric
Metric
Minimum Plain Bore
No
Category - BDI
Sheave - Variable Speed
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Variable Speed
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
0
Manufacturer Internal Number
2773307
Weight / LBS
1.31
Long Description
Variable Speed Pulley; 14MM Bore; 1 Grooves; 80.01MM Outside Diameter; Finished Bore; No Bushing; 9.525MM Belt Width Min; 9.525MM Belt Width Max; 3L | 4L | A | 5L | B Belt Series; 16.662MM Pitch Dia Min; 43.18MM Pitch Dia Max; 81.28MM Face Wid Min; 17.475MM Face Wid Max; Keyway; Manual Turn Adjustmen
Belt Width Minimum
0.375 Inch | 9.525 Millimeter
Outside Diameter
3.15 Inch | 80.01 Millimeter
Pitch Diameter Minimum
1.7 Inch | 43.18 Millimeter
Face Width Maximum
1 Inch | 25.4 Millimeter
Pitch Diameter Maximum
3.2 Inch | 81.28 Millimeter
Face Width Minimum
0.688 Inch | 17.475 Millimeter
Bore
0.551 Inch | 14 Millimeter
Belt Width Maximum
0.656 Inch | 16.662 Millimeter
