23111121 Sheaves - Fixed Pitch

B & B MANUFACTURING B & B MANUFACTURING

5C90E

Description

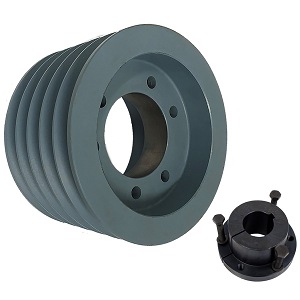

5C90E V-BELT PULLEY ; CAST IRON

Transmission Pulley; 5 Grooves; 9.4" Outer Diameter; Bushed; C Belt Series; 9" Pitch Minimum; 9" Pitch Maximum; Keyway

Part #

5C90E

BDI #
23111121

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
B & B MANUFACTURING
Manufacturer Name
B & B MANUFACTURING
Minimum Buy Quantity
N/A
Weight / Kilogram
18
EAN
0195057180093
Product Group - BDI
M02350
Number of Grooves
5
Mounting Method
Bushed
Bushing Size
E
Belt Series
C
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Solid Style | QD Bushing
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.bbman.com
Weight / LBS
40
Long Description
Transmission Pulley; 5 Grooves; 9.4" Outer Diameter; Bushed; C Belt Series; 9" Pitch Minimum; 9" Pitch Maximum; Keyway
Bore
0 Inch | 0 Millimeter
Pitch Diameter Minimum
9 Inch | 228.6 Millimeter
Belt Width Maximum
0.875 Inch | 22.225 Millimeter
Belt Width Minimum
0.875 Inch | 22.225 Millimeter
Pitch Diameter Maximum
9 Inch | 228.6 Millimeter
Bushing Bore Range
7/8 To 3-1/2 Inch | 35 To 75 Millimeter
Outside Diameter
9.4 Inch | 238.76 Millimeter
