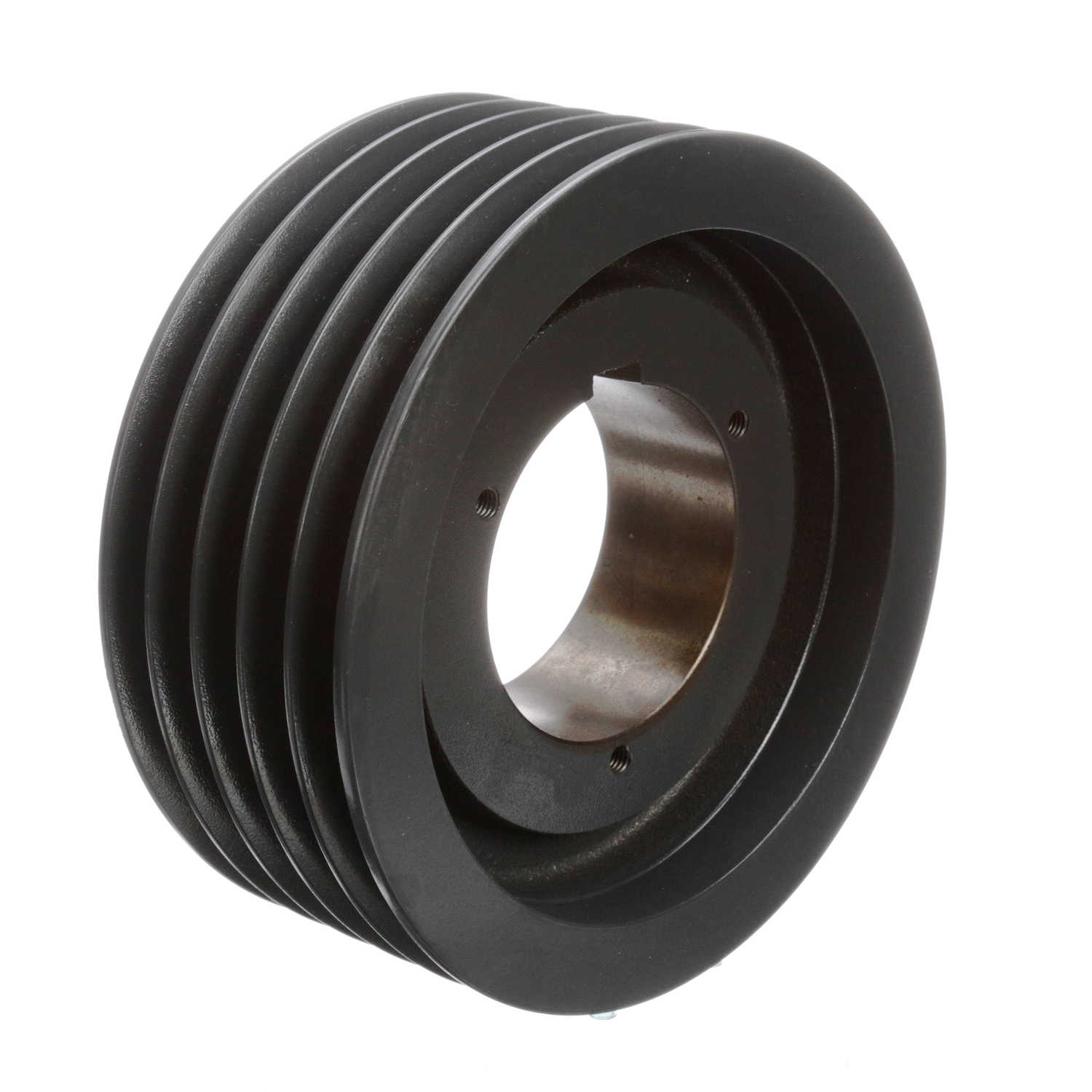

329069 Sheaves - Fixed Pitch

BROWNING BROWNING

5B5V94

Description

5B5V94 SHEAVE ; 5GROOVE 9.68"OD

5 Grooves; 9.68" Outside Diameter; Bushed; R1 Bushing Series; A | B | 5V Belt Series; 9" Pitch Minimum; 9-1/2" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway

Part #

1969195

BDI #
329069

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

360.7575 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 360.76 / each
$ 686.56 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
13.756
EAN
0662460344560
Product Group - BDI
M02350
Number of Grooves
5
Mounting Method
Bushed
Bushing Size
R1
Belt Series
A | B | 5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Web Style | Type 4
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
5B5V94
Manufacturer Internal Number
1969195
Weight / LBS
28.61
Long Description
5 Grooves; 9.68" Outside Diameter; Bushed; R1 Bushing Series; A | B | 5V Belt Series; 9" Pitch Minimum; 9-1/2" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway
Pitch Diameter Maximum
9.5 Inch | 241.3 Millimeter
Outside Diameter
9.68 Inch | 245.872 Millimeter
Pitch Diameter Minimum
9 Inch | 228.6 Millimeter
Bore
0 Inch | 0 Millimeter
Bushing Bore Range
1-1/8 To 3-3/4 Inch | 28.575 To 95.25 Millimeter
