326266 Sheaves - Fixed Pitch

BROWNING BROWNING

4R5V80

Description

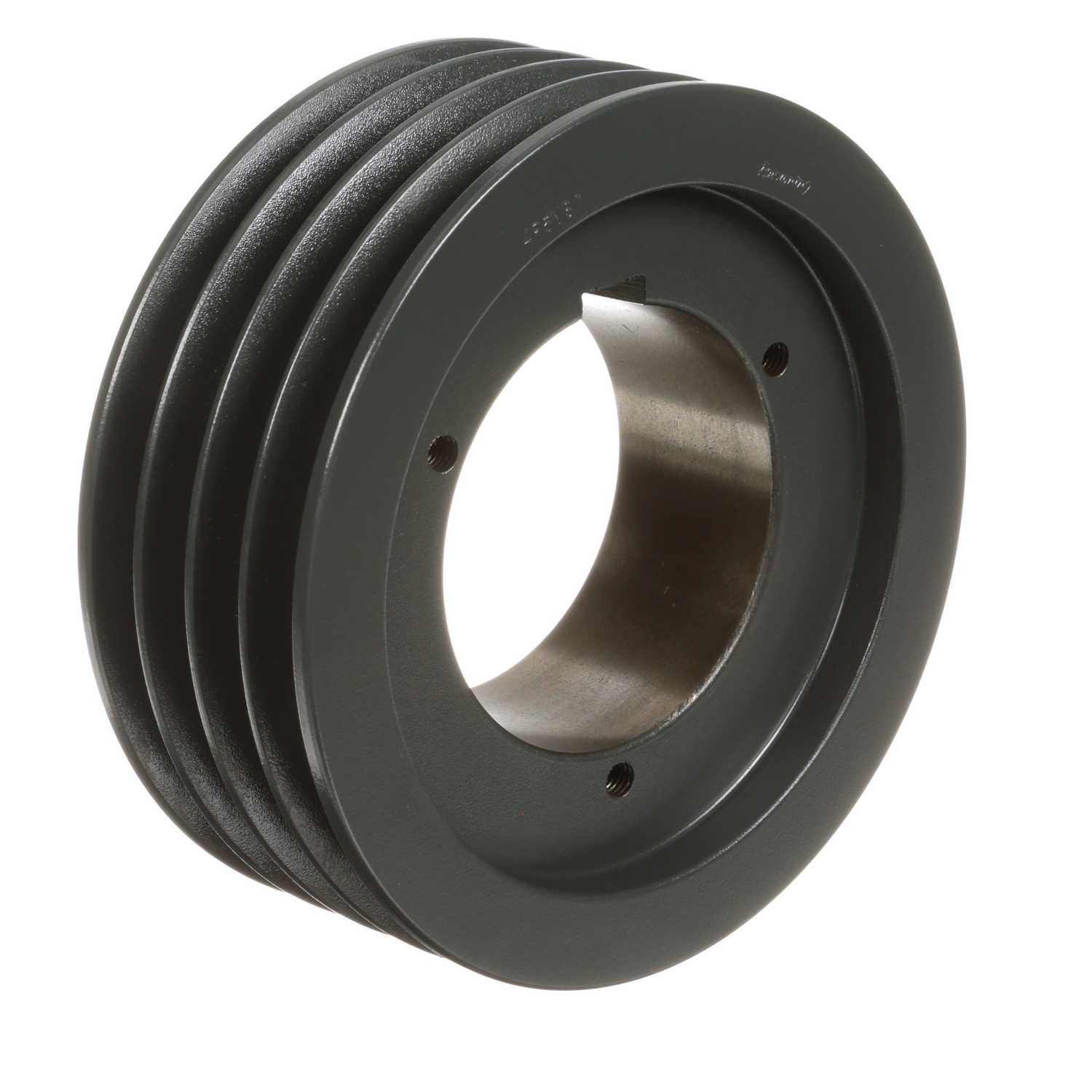

4R5V80 STOCK SHEAVE ; 4 GRV 5V 8" OD BORED FOR R1 BUSHING

4 Grooves; 8" Outside Diameter; Bushed; R1 Bushing Series; 5V Belt Series; 7.9" Pitch Minimum; 7.9" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway

Part #

1061639

BDI #
326266

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

328.6627 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 328.66 / each
$ 602.40 / each BDIExpress
QTY

Inventory

Total: 1

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
8.81
EAN
0662289200504
Product Group - BDI
M02350
Number of Grooves
4
Mounting Method
Bushed
Bushing Size
R1
Belt Series
5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Web Style | Type 13
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
4R5V80
Manufacturer Internal Number
1061639
Weight / LBS
19.4
Long Description
4 Grooves; 8" Outside Diameter; Bushed; R1 Bushing Series; 5V Belt Series; 7.9" Pitch Minimum; 7.9" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway
Bushing Bore Range
1-1/8 To 3-3/4 Inch | 28.575 To 95.25 Millimeter
Bore
0 Inch | 0 Millimeter
Outside Diameter
8 Inch | 203.2 Millimeter
Pitch Diameter Maximum
7.9 Inch | 200.66 Millimeter
Pitch Diameter Minimum
7.9 Inch | 200.66 Millimeter
