326265 Sheaves - Fixed Pitch

BROWNING BROWNING

4R5V212

Description

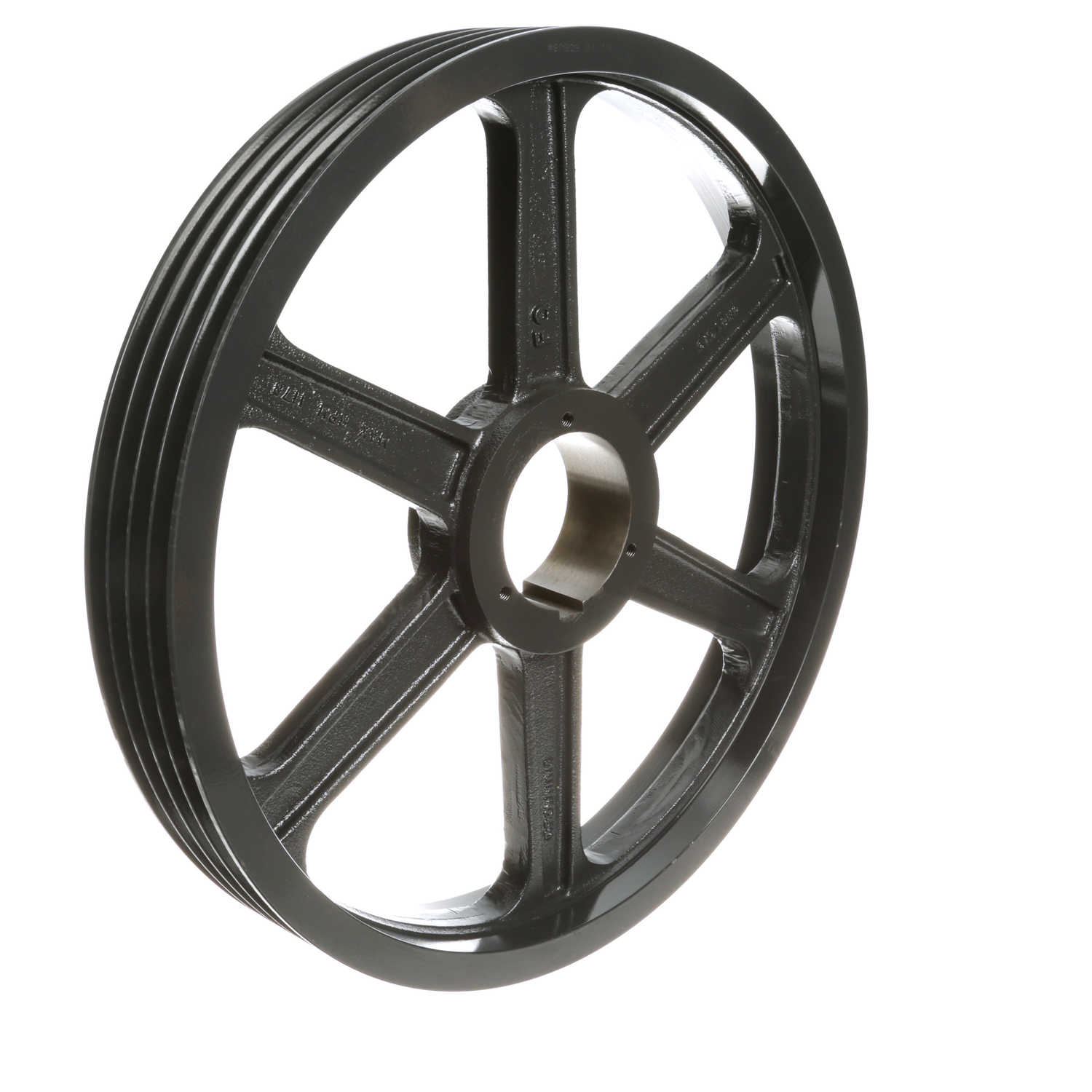

4R5V212 STOCK SHEAVE ; 4GRV 5V 21.2"OD BORED FOR Q1 BUSHING

4 Grooves; 21.2" Outside Diameter; Bushed; R1 Bushing Series; 5V Belt Series; 21.1" Pitch Minimum; 21.1" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway

Part #

1062553

BDI #
326265

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

934.7147 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 934.71 / each
$ 1,713.20 / each BDIExpress
QTY

Inventory

Total: 1

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
26.786
EAN
0662289111329
Product Group - BDI
M02350
Number of Grooves
4
Mounting Method
Bushed
Bushing Size
R1
Belt Series
5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Split Taper Bushing | Arm Style | Type 13
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
4R5V212
Manufacturer Internal Number
1062553
Weight / LBS
59
Long Description
4 Grooves; 21.2" Outside Diameter; Bushed; R1 Bushing Series; 5V Belt Series; 21.1" Pitch Minimum; 21.1" Pitch Maximum; 1-1/8 To 3-3/4" Bushing Bore Range; Keyway
Outside Diameter
21.2 Inch | 538.48 Millimeter
Pitch Diameter Maximum
21.1 Inch | 535.94 Millimeter
Bushing Bore Range
1-1/8 To 3-3/4 Inch | 28.575 To 95.25 Millimeter
Pitch Diameter Minimum
21.1 Inch | 535.94 Millimeter
Bore
0 Inch | 0 Millimeter
