22691569
Sheaves - Fixed Pitch
B & B MANUFACTURING
B & B MANUFACTURING
108V5300P
B & B MANUFACTURING B & B MANUFACTURING
Description

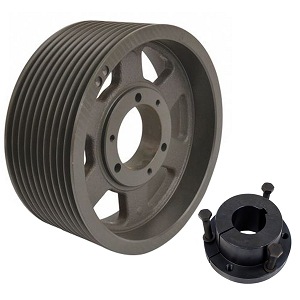

108V5300P V-BELT PULLEY ; 10 GRV 8V BELT P BUSHING CAST IRON
Transmission Pulley; 10 Grooves; 53" Outer Diameter; Bushed; 8V Belt Series; 52.8" Pitch Minimum; 52.8" Pitch Maximum; Keyway
Part #
108V5300P
BDI #
22691569
Details
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/rs/en/Mechanical-Power-Transmission/Belt-Drives/Sheaves-and-Pulleys/Sheaves---Fixed-Pitch/108V5300P/p/22691569
Your Price
Request A Price
BDIExpress
|
Specifications
Category
Minimum Buy Quantity
N/A
UNSPSC
26111806
Weight / Kilogram
428.09
EAN
0195057185111
Product Group - BDI
M02350
Number of Grooves
10
Mounting Method
Bushed
Bushing Size
P
Belt Series
8V
Bushing Bore Range - Inch
2-15/16 To 7
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Arm Style | QD Bushing
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.bbman.com
Weight / LBS
945
Long Description
Transmission Pulley; 10 Grooves; 53" Outer Diameter; Bushed; 8V Belt Series; 52.8" Pitch Minimum; 52.8" Pitch Maximum; Keyway
Pitch Diameter Minimum
52.8 Inch | 1341.12 Millimeter
Belt Width Minimum
1 Inch | 25.4 Millimeter
Belt Width Maximum
1 Inch | 25.4 Millimeter
Pitch Diameter Maximum
52.8 Inch | 1341.12 Millimeter
Bore
0 Inch | 0 Millimeter
Outside Diameter
53 Inch | 1346.2 Millimeter
