103V530SK https://www.bdiexpress.com/medias/INDBMFPULLEY-FXD-10G-QD-KW-SOL-300x300.jpg?context=bWFzdGVyfHJvb3R8MTcwMzF8aW1hZ2UvanBlZ3xhRFpsTDJobU55ODVPRGt6TmpjMU1EQTRNRE13TDBsT1JFSk5SbEJWVEV4RldWOUdXRVJmTVRCSFgxRkVYMHRYWDFOUFRGOHpNREI0TXpBd0xtcHdad3w2Y2U2YzkzZDhjYjE2MjZiYmRiNWEzMzA5NjJiYmQzMzE2NGM2OTYwNjBkYzdmYjNmMmNlYzk3N2RhY2QxZjkx
22690270 Sheaves - Fixed Pitch

B & B MANUFACTURING B & B MANUFACTURING

103V530SK

Description

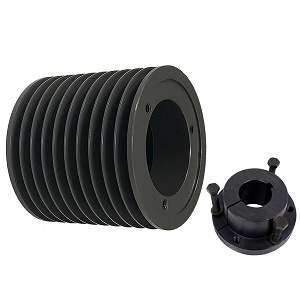

103V530SK V-BELT PULLEY ; 10 GRV 3V BELT SK BUSHING CAST IRON

Transmission Pulley; 10 Grooves; 5.3" Outer Diameter; Bushed; 3V Belt Series; 5.25" Pitch Minimum; 5.25" Pitch Maximum; Keyway

Part #

103V530SK

BDI #
22690270

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

79.25 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 79.25 / each
$ 102.10 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
B & B MANUFACTURING
Manufacturer Name
B & B MANUFACTURING
Minimum Buy Quantity
N/A
UNSPSC
26111806
Weight / Kilogram
4.62
EAN
0195057182165
Product Group - BDI
M02350
Number of Grooves
10
Mounting Method
Bushed
Bushing Size
SK
Belt Series
3V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
Solid Style | QD Bushing
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.bbman.com
Weight / LBS
10.2
Long Description
Transmission Pulley; 10 Grooves; 5.3" Outer Diameter; Bushed; 3V Belt Series; 5.25" Pitch Minimum; 5.25" Pitch Maximum; Keyway
Bushing Bore Range
1/2 To 2-5/8 Inch | 24 To 60 Millimeter
Belt Width Minimum
0.375 Inch | 9.525 Millimeter
Pitch Diameter Maximum
5.25 Inch | 133.35 Millimeter
Belt Width Maximum
0.375 Inch | 9.525 Millimeter
Pitch Diameter Minimum
5.25 Inch | 133.35 Millimeter
Bore
0 Inch | 0 Millimeter
Outside Diameter
5.3 Inch | 134.62 Millimeter
