W3814M65-3030 https://www.bdiexpress.com/medias/INDXXXPULLEY-SYNC-HTS-SOL-FL-TL-300x300.jpg?context=bWFzdGVyfHJvb3R8MTkwODZ8aW1hZ2UvanBlZ3xhR1V5TDJoak5DODVPRE0yT1RVNU1UQTFNRFUwTDBsT1JGaFlXRkJWVEV4RldWOVRXVTVEWDBoVVUxOVRUMHhmUmt4ZlZFeGZNekF3ZURNd01DNXFjR2N8YmMxMTQ4OWJiNzc3ZDZhOGMxNTQ4MDBlY2UxN2Y2ZTZjNzNhNDM5N2RjNGUzYzQ3MTRmNGFhOWEyZDM1MGQ5ZA
24304271 Pulleys - Synchronous

TIMKEN TIMKEN

W3814M65-3030

Description

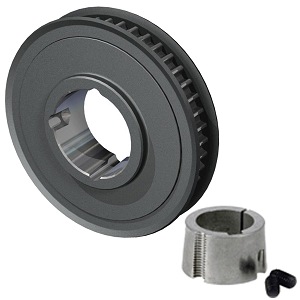

W3814M65-3030 SYNCHRONOUS SPROCKET ; TAPER BUSHED

Synchronous Pulley; 65MM Belt Width; 14 MM Belt Pitch; 14M-65 Belt Style; 38 Teeth; 69.063MM Face Width; Bushed; 166.6MM Outside Diameter; 169.34MM Pitch Diameter; Yes Keyway; 3030 Bushing; No Minimum Plain Bore

Part #

101756089

BDI #
24304271

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

423.16519999999997 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 423.17 / each
$ 593.22 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Pulleys - Synchronous
Brand
TIMKEN
Manufacturer Name
TIMKEN
Minimum Buy Quantity
N/A
Weight / Kilogram
6.026
EAN
0070964152084
Product Group - BDI
M02316
Belt Pitch
14 MM
Belt Style
14M-65
Number of Teeth
38
Mounting Method
Bushed
Flanges
Yes
Keyway Yes/No
Yes
Bushing Size
3030
Minimum Plain Bore
No
Other Features
Bushing Not Included | Taper Lock Bushing | Solid Style
Inch - Metric
Metric
Category - BDI
Pulley Synchronous
Harmonized Tariff Code
8483.50.90.80
Noun
Pulley
Keyword String
Synchronous
Manufacturer URL
https://www.timken.com
Weight / LBS
13.4
Long Description
Synchronous Pulley; 65MM Belt Width; 14 MM Belt Pitch; 14M-65 Belt Style; 38 Teeth; 69.063MM Face Width; Bushed; 166.6MM Outside Diameter; 169.34MM Pitch Diameter; Yes Keyway; 3030 Bushing; No Minimum Plain Bore
Outside Diameter
6.559 Inch | 166.6 Millimeter
Pitch Diameter
6.667 Inch | 169.34 Millimeter
Belt Width
2.559 Inch | 65 Millimeter
Flange Outside Diameter
7.16 Inch | 181.864 Millimeter
Bushing Bore Range
15/16 To 3 Inch | 0 Millimeter
Face Width
2.719 Inch | 69.063 Millimeter
Bore
0 Inch | 0 Millimeter
