QD96XH400 https://www.bdiexpress.com/medias/INDBMFPULLEY-SYNC-ARM-XH-D2-NFL-QD-300x300.jpg?context=bWFzdGVyfHJvb3R8MTczNzh8aW1hZ2UvanBlZ3xhRFU1TDJneE1TODVPRGt6TXpBMU9UUXlNRFEyTDBsT1JFSk5SbEJWVEV4RldWOVRXVTVEWDBGU1RWOVlTRjlFTWw5T1JreGZVVVJmTXpBd2VETXdNQzVxY0djfDVjZjk3ZmQ4NmU3NDhiZGNmNDE3NjM0NmQ5YWE4NDU5NmJiODFkZGNiZmVjNWJhN2RjZjg1NjNjODAxYTI2Nzk
Back to search results
22738420 Pulleys - Synchronous

B & B MANUFACTURING B & B MANUFACTURING

QD96XH400

Description

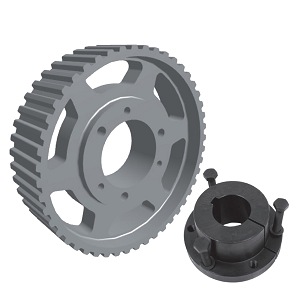

QD96XH400 TIMING PULLEY ; 7/8" PIT 4" BELT W CI J BUSHED 96T

Synchronous Pulley; 4" Belt Width; 7/8" Belt Pitch; XH Style; 96 Teeth; 4-11/16" Face Width; Bushed; 26.628" Outside Diameter; 26.738" Pitch Diameter; Yes Keyway; 1-1/2 To 4-5/8" Bushing Bore Range; J Bushing; No Minimum Plain Bore

Part #

QD96XH400

BDI #
22738420

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Pulleys - Synchronous
Brand
B & B MANUFACTURING
Manufacturer Name
B & B MANUFACTURING
Minimum Buy Quantity
N/A
Weight / Kilogram
56.17
EAN
0195057631656
Product Group - BDI
M02316
Belt Pitch
7/8 Inch
Belt Style
XH
Number of Teeth
96
Mounting Method
Bushed
Flanges
No
Keyway Yes/No
Yes
Bushing Size
J
Minimum Plain Bore
No
Other Features
Bushing Not Included | Type D2 | Quick Disconnect Bushing | Trapezoidal Pitch | Cast Iron | Black Oxide Finish
Inch - Metric
Inch
Category - BDI
Pulley Synchronous
Harmonized Tariff Code
8483.50.90.80
Noun
Pulley
Keyword String
Synchronous
Manufacturer URL
https://www.bbman.com
Weight / LBS
124
Long Description
Synchronous Pulley; 4" Belt Width; 7/8" Belt Pitch; XH Style; 96 Teeth; 4-11/16" Face Width; Bushed; 26.628" Outside Diameter; 26.738" Pitch Diameter; Yes Keyway; 1-1/2 To 4-5/8" Bushing Bore Range; J Bushing; No Minimum Plain Bore
Pitch Diameter
26.738 Inch | 679.145 Millimeter
Bore
0 Inch | 0 Millimeter
Face Width
4.688 Inch | 119.075 Millimeter
Belt Width
4 Inch | 101.6 Millimeter
Outside Diameter
26.628 Inch | 676.351 Millimeter
Bushing Bore Range
1-1/2 To 4-5/8 Inch | 60 To 90 Millimeter
