B & B MANUFACTURING
B & B MANUFACTURING
120LP100
B & B MANUFACTURING B & B MANUFACTURING
Description

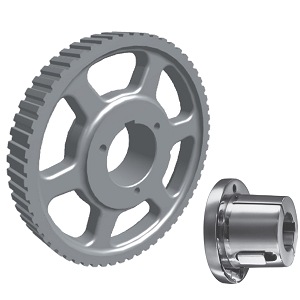

120LP100 TIMING PULLEY ; 3/8" PIT 1" W P1 BUSHED CAST IRON 120T
Synchronous Pulley; 1" Belt Width; 3/8" Belt Pitch; L Style; 120 Teeth; 1-1/4" Face Width; Bushed; 14.294" Outside Diameter; 14.324" Pitch Diameter; Yes Keyway; 1/2 To 1-3/4" Bushing Bore Range; P1 Bushing; No Minimum Plain Bore
Part #
120LP100
BDI #
22697185

Details
178.0149
USD
2099-12-31
http://schema.org/NewCondition
https://schema.org/LimitedAvailability
https://www.bdiexpress.com/us/en/Mechanical-Power-Transmission/Belt-Drives/Sheaves-and-Pulleys/Pulleys---Synchronous/120LP100/p/22697185
Your Price
$ 178.01 / each
$ 186.40 / each BDIExpress
$ 186.40 / each BDIExpress
|
Specifications
Category
Minimum Buy Quantity
N/A
UNSPSC
26111807
Weight / Kilogram
5.48
EAN
0195057627772
Product Group - BDI
M02316
Belt Pitch
3/8 Inch
Belt Style
L
Number of Teeth
120
Mounting Method
Bushed
Flanges
No
Keyway Yes/No
Yes
Bushing Size
P1
Minimum Plain Bore
No
Other Features
Bushing Not Included | Type 13 | Split Taper Bushing | Cast Iron
Inch - Metric
Inch
Category - BDI
Pulley Synchronous
Harmonized Tariff Code
8483.50.90.80
Noun
Pulley
Keyword String
Synchronous
Manufacturer URL
https://www.bbman.com
Weight / LBS
12.1
Long Description
Synchronous Pulley; 1" Belt Width; 3/8" Belt Pitch; L Style; 120 Teeth; 1-1/4" Face Width; Bushed; 14.294" Outside Diameter; 14.324" Pitch Diameter; Yes Keyway; 1/2 To 1-3/4" Bushing Bore Range; P1 Bushing; No Minimum Plain Bore
Face Width
1.25 Inch | 31.75 Millimeter
Outside Diameter
14.294 Inch | 363.068 Millimeter
Bore
0 Inch | 0 Millimeter
Belt Width
1 Inch | 25.4 Millimeter
Bushing Bore Range
1/2 To 1-3/4 Inch | 0 Millimeter
Pitch Diameter
14.324 Inch | 363.83 Millimeter
