NS820-27T-1-7/16IN-KWSS-PA 614-52-4 https://www.bdiexpress.com/medias/MFRREXMDSPKT-800-RND-KW-52-4-300x300.jpg?context=bWFzdGVyfHJvb3R8MTc1OTZ8aW1hZ2UvanBlZ3xhRFl3TDJneE5TOHhNREE1TVRneU9EUTBOVEl4TkM5TlJsSlNSVmhOUkZOUVMxUmZPREF3WDFKT1JGOUxWMTgxTWw4MFh6TXdNSGd6TURBdWFuQm58ZWZmNmUzOWJlMDM3N2FkODg3Njc4MDA2NTlhNzdiZDVhYjY2NzM2OWY2ZTM3NDI2N2ZlN2QxODUwMWQwNzBmOQ
24117573 Table Top and Modular Sprockets

REXNORD REXNORD

NS820-27T-1-7/16IN-KWSS-PA 614-52-4

Description

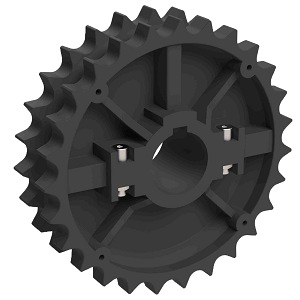

NS820-27T-1-7/16IN-KWSS-PA 614-52-4 ; SPLIT SPROCKET

Conveying Chain Sprocket; 1-7/16" Bore; 1-1/2" Pitch; 815 | 820 | 831 | 4705 | 4706 | 4707 | 5705 | 5706 | SSB Modular - Flat Top Size; 27 Teeth; A-No Hub Type; Finished Bore; Round; 6.56" Outside Diameter; 6.504" Pitch Diameter; Straight Running | Back Flexing; Thermoplastic Material; Grooved; Split; Keyway

Part #

10028656

BDI #
24117573

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

86.38610000000001 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 86.39 / each
$ 88.59 / each BDIExpress
QTY

Inventory

Total: 3

Category
Table Top and Modular Sprockets
Brand
REXNORD
Manufacturer Name
REXNORD
Minimum Buy Quantity
N/A
Weight / Kilogram
0.797
EAN
0793699414066
Product Group - BDI
M00332
Modular - Flat Top Size
815 | 820 | 831 | 4705 | 4706 | 4707 | 5705 | 5706 | SSB
Number of Teeth
27
Hub Type
A-No Hub
Mounting Method
Finished Bore
Bore Profile
Round
Modular - Flat Top Type
Straight Running | Back Flexing
Material
Thermoplastic
Grooved Yes or No
Yes
Split Yes or No
Yes
Keyway Yes/No
Yes
Inch - Metric
Inch
Category - BDI
Flat Top Sprockets
Harmonized Tariff Code
8483.90.10.50
Noun
Sprocket
Keyword String
Conveying Chain
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
10028656
Weight / LBS
1.76
Long Description
Conveying Chain Sprocket; 1-7/16" Bore; 1-1/2" Pitch; 815 | 820 | 831 | 4705 | 4706 | 4707 | 5705 | 5706 | SSB Modular - Flat Top Size; 27 Teeth; A-No Hub Type; Finished Bore; Round; 6.56" Outside Diameter; 6.504" Pitch Diameter; Straight Running | Back Flexing; Thermoplastic Material; Grooved; Split; Keyway
Bore
1.438 Inch | 36.525 Millimeter
Pitch
1.5 Inch | 38.1 Millimeter
Pitch Diameter
6.504 Inch | 165.202 Millimeter
Outside Diameter
6.56 Inch | 166.624 Millimeter
