WT8551A001MSAC120/60D https://www.bdiexpress.com/medias/INDASVVALVEX-8551A001-WT-MS-300x300.jpg?context=bWFzdGVyfHJvb3R8MzU4ODl8aW1hZ2UvanBlZ3xhREZoTDJnell5OHhNREV6TWpZMk9UTXpNelV6TkM5SlRrUkJVMVpXUVV4V1JWaGZPRFUxTVVFd01ERmZWMVJmVFZOZk16QXdlRE13TUM1cWNHY3w3ZWUwNWQ1YWViMTQ3MDEyMTYzNmMyZGQxMDNiNjBmZjQ0OTkyZjE1YTM5ZjFhOGJiNzVkM2M3MjYwMjFhYTI3
21430260 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

WT8551A001MSAC120/60D

Description

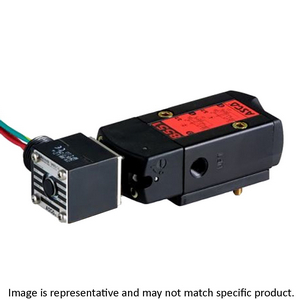

WT8551A001MSAC120/60D SOLENOID VALVE ; 1/4" FNPT 1/8" FNPT 5P-4W 120/60 VAC

Spool Valve; Inlet 1/4" FNPT | Exhaust 1/8" FNPT Port; 5 Port | 4 Way; 2 Position; 120/60 VAC; Pneumatic; Solenoid - Air Pilot - Manual | Spring Return; 150 PSI; 5 To 140 Deg F; Buna-N | Polyurethane Seal; Aluminum

Part #

WT8551A001MSAC120/60D

BDI #
21430260

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

210.84099999999998 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 210.84 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
Weight / Kilogram
0.39
Product Group - BDI
F02352
Valve Type
Spool | Solenoid
Port Type
Inlet 1/4" FNPT | Exhaust 1/8" FNPT
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot - Manual | Spring Return
Voltage
120/60 VAC
Media
Pneumatic
Maximum Pressure
150 PSI
Operating Pressure Range
30 To 150 PSI
Operating Temperature Range
5 To 140 Deg F
Seal Type
Buna-N | Polyurethane
Body Material
Aluminum
Inch - Metric
Inch
Other Features
0.86 CV Factor | 1/4 Inch Orifice Size | Air Fluid | Watertight Enclosure | Screw Type Manual Operator | 18 Inch Lead
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Spool Solenoid
Manufacturer URL
https://www.emerson.com
Weight / LBS
1.09
Long Description
Spool Valve; Inlet 1/4" FNPT | Exhaust 1/8" FNPT Port; 5 Port | 4 Way; 2 Position; 120/60 VAC; Pneumatic; Solenoid - Air Pilot - Manual | Spring Return; 150 PSI; 5 To 140 Deg F; Buna-N | Polyurethane Seal; Aluminum
Overall Width
1.469 Inch | 37.313 Millimeter
Overall Height
2.386 Inch | 60.604 Millimeter
Overall Length
6.009 Inch | 152.629 Millimeter
