VQ7-8-FG-D-3ZSC https://www.bdiexpress.com/medias/INDSMCVALVEX-VQ7-8-FGD-SC-300x300.jpg?context=bWFzdGVyfHJvb3R8MTk1MTJ8aW1hZ2UvanBlZ3xhRGswTDJoaVpTOHhNREF5TVRNd09USXhPRGcwTmk5SlRrUlRUVU5XUVV4V1JWaGZWbEUzWHpoZlJrZEVYMU5EWHpNd01IZ3pNREF1YW5Cbnw5NDZhYTU0YjdjZmRjMzdjZTFjMTc3MzExODQwYzMxYzA2OGE4MTI4OWZjODE1MWQyYjRjMGUzNjhmMWYyZDAx
17877499 Hydraulic and Pneumatic Valves

SMC SMC

VQ7-8-FG-D-3ZSC

Description

VQ7-8-FG-D-3ZSC

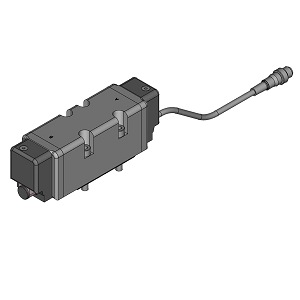

Solenoid Valve; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Solenoid - Air Pilot - Detent Return; 145 PSI; 14 To 140 Deg F; Metal Seal

Part #

VQ7-8-FG-D-3ZSC

BDI #
17877499

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

160.95 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 160.95 / each
$ 161.00 / each BDIExpress
QTY

Inventory

Total: 24

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0.685
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
Not Available
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Solenoid - Air Pilot - Detent Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
22 To 145 PSI
Operating Temperature Range
14 To 140 Deg F
Seal Type
Metal
Inch - Metric
Inch
Other Features
2.4 - 3 Cv Factor | Pre Wired Connector | Without Sub Plate | Indicator Light With Surge Voltage Suppressor
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
1.54324
Long Description
Solenoid Valve; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Solenoid - Air Pilot - Detent Return; 145 PSI; 14 To 140 Deg F; Metal Seal
Overall Length
6.909 Inch | 175.5 Millimeter
Overall Height
2.303 Inch | 58.5 Millimeter
Overall Width
1.969 Inch | 50 Millimeter
