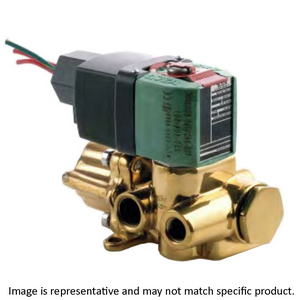

EE8344P080MODC100-240/50-60/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8344P080-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTQzNjB8aW1hZ2UvanBlZ3xhR016TDJoaU1DOHhNREV6TWpRNE1qWTROekF3Tmk5SlRrUkJVMVpXUVV4V1JWaGZPRE0wTkZBd09EQmZRbEpUWHpNd01IZ3pNREF1YW5Cbnw2N2Y3ODg1MDlmZmExNDc3ZTFiMDM4ZWYyODk3YzgyMGZhM2UzMTAzZmNhYzI5YjQ0MzllM2NmMDE3YzlkYTNj
20699924 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

EE8344P080MODC100-240/50-60/DC

Description

EE8344P080MODC100-240/50-60/DC VALVE ; 3/8" X 3/8" 4 BRASS 1.5 /H W

Solenoid Poppet Valve; 3/8" FNPT Port; 4 Port - 4 Way; 2 Position; 100 To 240/50-60 VAC - 100 To 240 VDC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Solenoid - Air Pilot Return; Air - Water 300 PSI/Light Oil 200 PSI; 32 To 180 Deg F; Buna-N Seal; Brass

Part #

EE8344P080MO100-240

BDI #
20699924

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1698.7172 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,698.72 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
Weight / US pound
0.01
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
3/8" FNPT
Number of Ports/Way
4 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Solenoid - Air Pilot Return
Voltage
100 To 240/50-60 VAC | 100 To 240 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
Air - Water 300 PSI | Light Oil 200 PSI
Operating Pressure Range
Air - Water 10 To 300 PSI | Light Oil 25 To 200 PSI
Operating Temperature Range
32 To 180 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
1.4/2.2 Cv Factor | 3/8" Orifice Size | Air - Inert Gas - Light Oil - Water Fluid | Class I | Division 2 General Purpose | Manual Operator
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Poppet Valve; 3/8" FNPT Port; 4 Port - 4 Way; 2 Position; 100 To 240/50-60 VAC - 100 To 240 VDC; Hydraulic - Pneumatic; Solenoid - Air Pilot/Solenoid - Air Pilot Return; Air - Water 300 PSI/Light Oil 200 PSI; 32 To 180 Deg F; Buna-N Seal; Brass
Overall Length
6.06 Inch | 153.924 Millimeter
Overall Height
4.64 Inch | 117.856 Millimeter
Overall Width
5.3 Inch | 134.62 Millimeter
