8353G050AC120/50D https://www.bdiexpress.com/medias/INDASVVALVEX-8353G050-300x300.jpg?context=bWFzdGVyfHJvb3R8NDA2Mjl8aW1hZ2UvanBlZ3xhR1UyTDJneU5pOHhNREV6TVRBMk5qUTROamd4TkM5SlRrUkJVMVpXUVV4V1JWaGZPRE0xTTBjd05UQmZNekF3ZURNd01DNXFjR2N8ZDI2ZmI4MDYwZjFhMzVmMGI2YTdmZjY0OTE5ZWNkMGY5MWU4ZDA3YmRlMjVhODk0NzYxYjM2M2I5ZDcyMzQzNA
27038186 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8353G050AC120/50D

Description

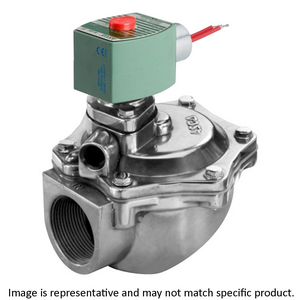

8353G050AC120/50D SOLENOID VALVE, 2 X 2 2NC ALUM 10.1/F W 120VAC AT 50HZ (SMARTCATALOG)

Solenoid Diaphragm Valve; 2" FNPT - 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; 120/50 VAC; Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; 125 PSI; 32 To 185 Deg F; Buna-N Seal; Aluminum

Part #

8353G050AC120/50D

BDI #
27038186

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

1100.3593 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 1,100.36 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
ASCO VALVE
Minimum Buy Quantity
1
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Diaphragm | Solenoid
Port Type
2" FNPT | 3/4" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
120/50 VAC
Media
Pneumatic
Maximum Pressure
125 PSI
Operating Pressure Range
5 To 125 PSI
Operating Temperature Range
32 To 185 Deg F
Seal Type
Buna-N
Body Material
Aluminum
Inch - Metric
Inch
Other Features
76 Cv Factor | 2" NPT Orifice Size | Air - Inert Gas Fluid | Integral Pilot
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Diaphragm Solenoid
Manufacturer URL
https://www.ascovalve.com
Long Description
Solenoid Diaphragm Valve; 2" FNPT - 3/4" FNPT Port; 2 Port - 2 Way; 2 Position; 120/50 VAC; Pneumatic; Solenoid - Air Pilot/Air Pilot - Spring Return; 125 PSI; 32 To 185 Deg F; Buna-N Seal; Aluminum
Overall Length
6.63 Inch | 168.402 Millimeter
Overall Width
6.5 Inch | 165.1 Millimeter
Overall Height
8.25 Inch | 209.55 Millimeter
