8320G182MBDC48/DC https://www.bdiexpress.com/medias/INDASVVALVEX-8320G174-MB-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTA5MjZ8aW1hZ2UvanBlZ3xhRGxrTDJoaE9DOHhNREV6TVRnek56QXlOak16TkM5SlRrUkJVMVpXUVV4V1JWaGZPRE15TUVjeE56UmZUVUpmUWxKVFh6TXdNSGd6TURBdWFuQm58NDUwZTI0MTVmNWQzZDc0NjJkYzlmZjVkYzdkNjg3NDI1N2ZlMmE1ZWFjMDAzZjlhM2M2N2Q2NjQ1NzE1OWFkNg
20696768 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8320G182MBDC48/DC

Description

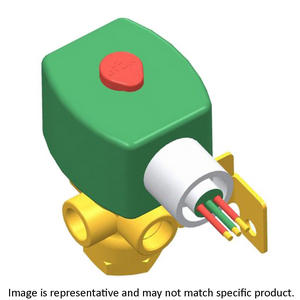

8320G182MBDC48/DC SOLENOID VALVE ; 1/4" X 1/16" 3NC BRASS 11.6/F W

Solenoid Valve; 1/4" FNPT Port; 3 Port | 3 Way; 2 Position; 48 VDC; Hydraulic | Pneumatic; Solenoid | Spring Return; 160 PSI; 32 To 150 Deg F; Buna-N Seal; Brass

Part #

8320G182MBDC48/DCD

BDI #
20696768

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

453.3545 USD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 453.35 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
Weight / US pound
0.01
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/4" FNPT
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
48 VDC
Media
Hydraulic | Pneumatic
Maximum Pressure
160 PSI
Operating Pressure Range
0 To 160 PSI
Operating Temperature Range
32 To 150 Deg F
Seal Type
Buna-N
Body Material
Brass
Inch - Metric
Inch
Other Features
0.09 Cv Factor | 1/16" Orifice Size | Normally Closed | Direct Acting | Ambient Temperature 0 To 40 Deg C | Mounting Bracket
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.emerson.com
Weight / LBS
1.5
Long Description
Solenoid Valve; 1/4" FNPT Port; 3 Port | 3 Way; 2 Position; 48 VDC; Hydraulic | Pneumatic; Solenoid | Spring Return; 160 PSI; 32 To 150 Deg F; Buna-N Seal; Brass
Overall Length
3.385 Inch | 85.979 Millimeter
Overall Width
2.565 Inch | 65.151 Millimeter
Overall Height
3.748 Inch | 95.199 Millimeter
