8220G406AC115/50D https://www.bdiexpress.com/medias/INDASVVALVEX-8220G401-BRS-300x300.jpg?context=bWFzdGVyfHJvb3R8NTU1NTh8aW1hZ2UvanBlZ3xhREJrTDJobVl5OHhNREV6TVRneU16ZzFNelU1T0M5SlRrUkJVMVpXUVV4V1JWaGZPREl5TUVjME1ERmZRbEpUWHpNd01IZ3pNREF1YW5CbnwwMmY2ZmNhM2VlNTQ0YzlmYTZiNjgxNGQwOTUxYWI4NmIwZmY3MjU5M2JmMzBkM2FhZTU3NDcxZWQzZTJkMDRl
21429991 Hydraulic and Pneumatic Valves

ASCO VALVE ASCO VALVE

8220G406AC115/50D

Description

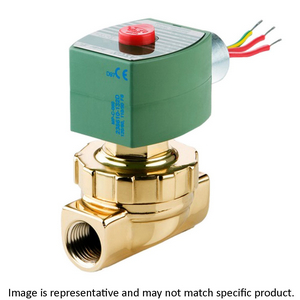

8220G406AC115/50D SOL VALVE ; 1/2"X1/2" 2NC BRASS 10.1/H WTR/STM

Solenoid Valve; 1/2" FNPT Port; 2 Port | 2 Way; 2 Position; 115/50 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; Hot Water 150 PSI | Steam 125 PSI; Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F; EPDM Seal; Brass

Part #

8220G406AC115/50D

BDI #
21429991

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Details

535.291 USD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 535.29 / each BDIExpress
QTY

Inventory

Total: 1

Category
Hydraulic and Pneumatic Valves
Brand
ASCO VALVE
Manufacturer Name
EMERSON INDUSTRIAL AUTOMATION
Minimum Buy Quantity
N/A
Weight / Kilogram
0
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
1/2" FNPT
Number of Ports/Way
2 Port | 2 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot - Spring Return
Voltage
115/50 VAC
Media
Hydraulic | Pneumatic
Maximum Pressure
Hot Water 150 PSI | Steam 125 PSI
Operating Pressure Range
Hot Water 5 To 150 PSI | Steam 5 To 125 PSI
Operating Temperature Range
Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F
Seal Type
EPDM
Body Material
Brass
Inch - Metric
Inch
Other Features
4.7 Cv Factor | 1/2" Orifice Size | Hot Water - Steam Fluid | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.emerson.com
Weight / LBS
1
Long Description
Solenoid Valve; 1/2" FNPT Port; 2 Port | 2 Way; 2 Position; 115/50 VAC; Hydraulic | Pneumatic; Solenoid - Air Pilot | Air Pilot - Spring Return; Hot Water 150 PSI | Steam 125 PSI; Hot Water 32 To 210 Deg F | Steam 32 To 353 Deg F; EPDM Seal; Brass
Overall Height
4.108 Inch | 104.343 Millimeter
Overall Width
2.246 Inch | 57.048 Millimeter
Overall Length
3.575 Inch | 90.8 Millimeter
