Back to search results
20182239 DC motors

LEESON LEESON

109103.00

Description

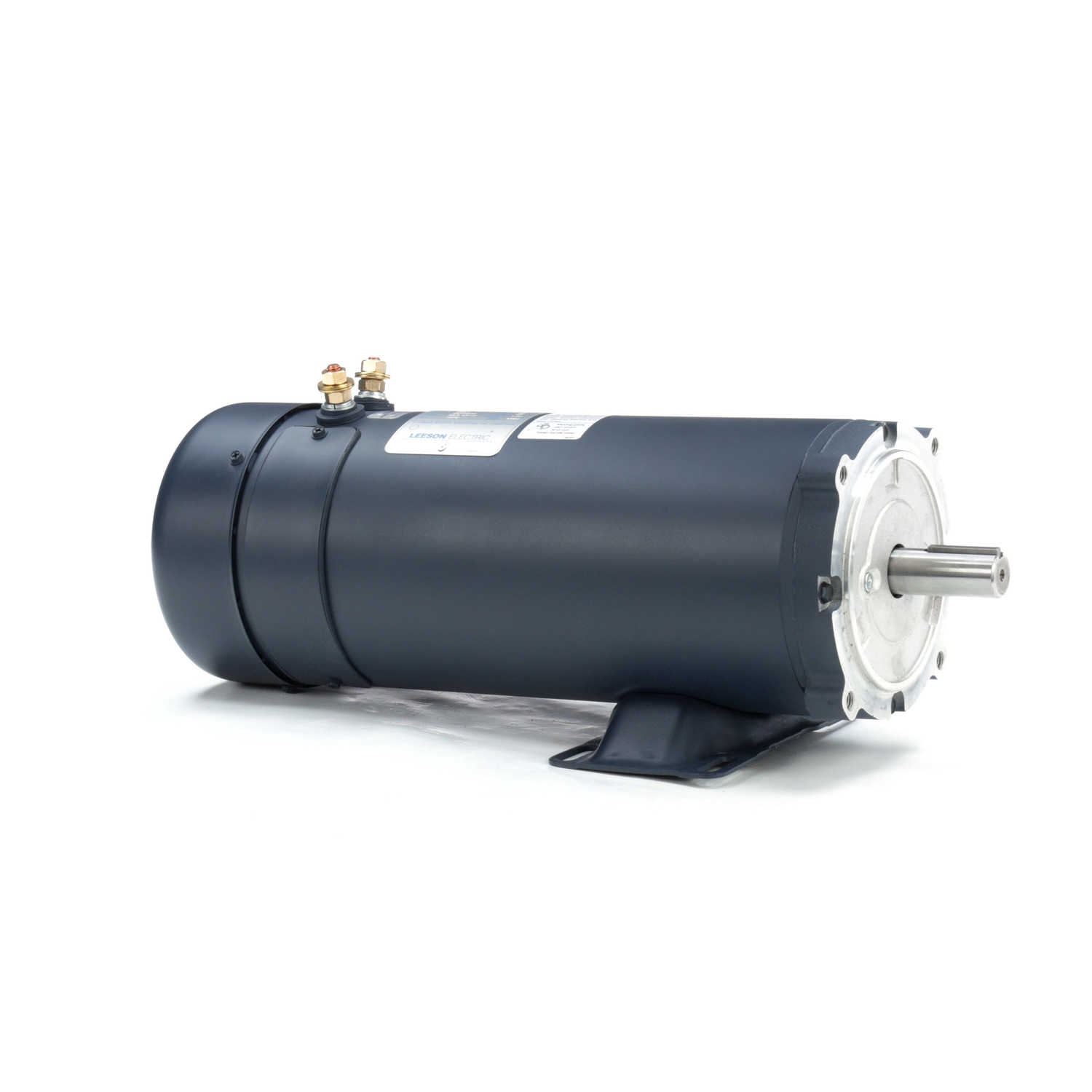

LEESON 109103.00

Permanent Magnet; 1-1/2HP; WMS56CZ Frame Size; 1800 Sync RPM; 24 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face and Rigid Mounted; Base; 7/8" Shaft Diameter; 3-1/2" Base to Center Height; 17.38" Overall Length; 77.5 Efficiency Full Load

Part #

109103.00

BDI #
20182239

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
DC motors
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
EAN
0691720347454
Weight / US pound
0.01
Product Group - BDI
M04104
Konjska snaga
1-1/2HP
Veličina okvira
WMS56CZ
Sinhroni o/min
1800
Napon
24
Struja
DC
Kućište
TEFC
Profil okvira
NEMA
Način montiranja
C-Face | Rigid
Baza
Yes
Efikasnost punog opterećenja
77.5
Inčni - metrički
Inch
Ostale karakteristike
Current Rating 60 Ampere | Low Voltage
Kategorija - BDI
DC Motor
Harmonizovana carinska šifra
8501.33.40.60
Imenica
Motor
Niz ključnih reči
Direct Current Permanent Magnet
URL proizvođača
https://www.regalbeloit.com
Broj artikla proizvođača
109103.00
Interni broj proizvođača
109103.00
Težina / lbs
52
Duži opis
Permanent Magnet; 1-1/2HP; WMS56CZ Frame Size; 1800 Sync RPM; 24 Voltage; DC; TEFC Enclosure; NEMA Frame Profile; C-Face and Rigid Mounted; Base; 7/8" Shaft Diameter; 3-1/2" Base to Center Height; 17.38" Overall Length; 77.5 Efficiency Full Load
Ukupna dužina
17.38 inč | 441.452 milimetar
Baza do visine ose
3.5 inč | 88.9 milimetar
Prečnik vratila
0.875 inč | 22.225 milimetar
