Back to search results
22331955 AC Motors

MARATHON MOTORS MARATHON MOTORS

L417B ; 326TTFS16102

Description

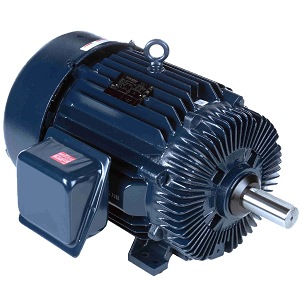

326TTFS16102 AC MOTOR ; 25HP 900RPM TEFC 326T 3/60/230/460V

AC Motor; 25HP; 326T Frame Size; 882/735 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid Mounted; 2-1/8" Shaft Diameter; 13" Overall Length; 90.2% Efficiency Full Load

Part #

L417B ; 326TTFS16102

BDI #
22331955

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
AC Motors
Brand
MARATHON MOTORS
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
0
EAN
0722856052179
Product Group - BDI
M04104
Horse Power
25HP
Frame Size
326T
Hertz
60
Sync RPM
882/735
Voltage
230/460
Current
AC
Phase
Three Phase
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
Rigid
Base
Yes
Efficiency Full Load
90.2
Inch - Metric
Inch
Other Features
Current Rating 73/36.5 Ampere | 8 Poles
Category - BDI
AC Motor
Harmonized Tariff Code
8501.40.60.40
Noun
Motor
Keyword String
Alternating Current General Purpose
Manufacturer URL
https://www.regalrexnord.com
Weight / LBS
672
Long Description
AC Motor; 25HP; 326T Frame Size; 882/735 Sync RPM; 230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid Mounted; 2-1/8" Shaft Diameter; 13" Overall Length; 90.2% Efficiency Full Load
Shaft Diameter
2.125 Inch | 53.975 Millimeter
Overall Length
13 Inch | 330.2 Millimeter
