331234 Sheaves - Fixed Pitch

BROWNING BROWNING

6B136SF

Description

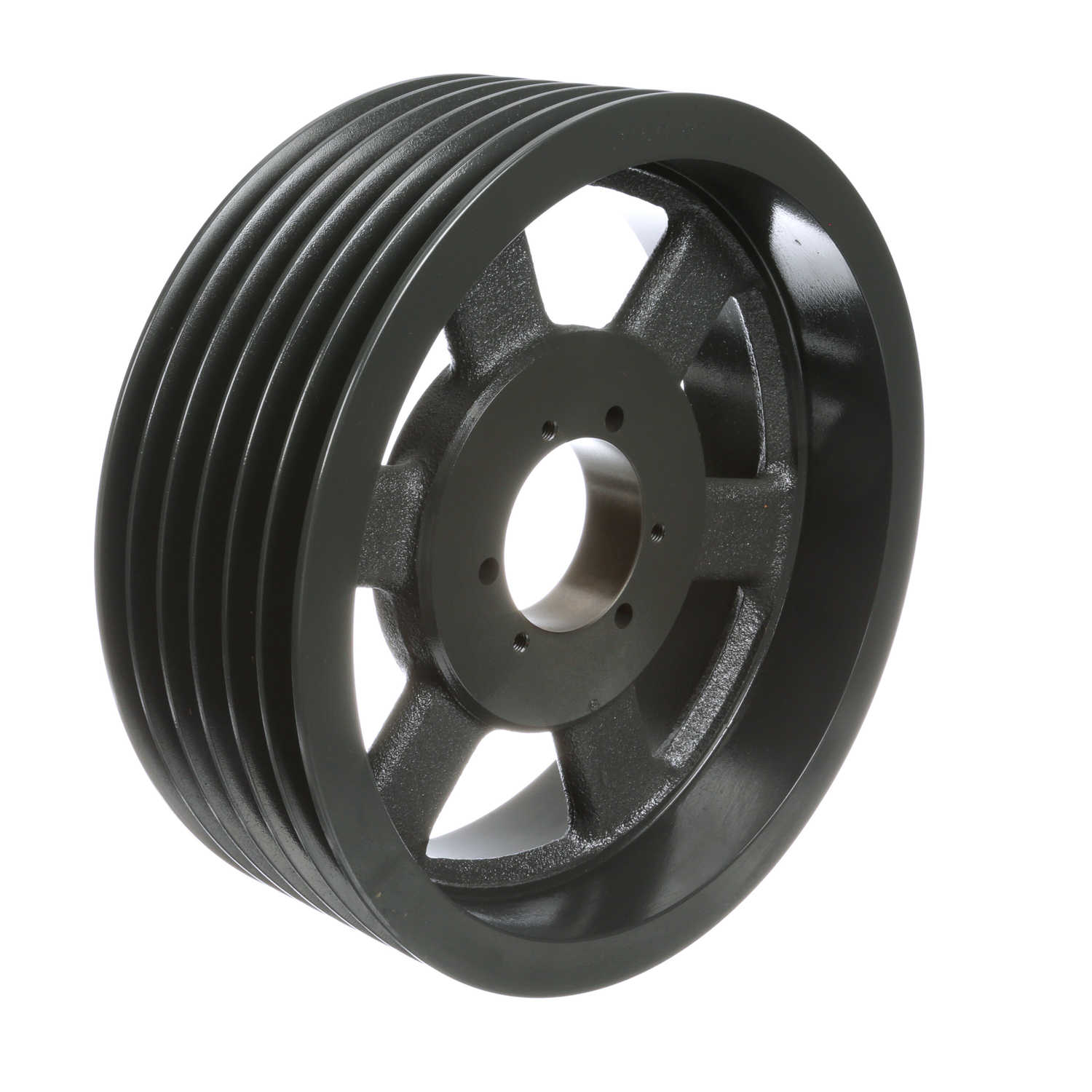

6B136SF SHEAVE ; 6GROOVE 13.6"OD NON RETURNABLE

6 Grooves; 13.95" Outside Diameter; Bushed; SF Bushing Series; A | B Belt Series; 13.2" Pitch Minimum; 13.6" Pitch Maximum; 1/2 To 2-15/16" Bushing Bore Range; Keyway

Part #

6B136SF

BDI #
331234

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
19.98
EAN
0662289356232
Product Group - BDI
M02350
Number of Grooves
6
Mounting Method
Bushed
Bushing Size
SF
Belt Series
A | B
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
QD Bushing | Arm Style | Type A3
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
6B136SF
Manufacturer Internal Number
1005701
Weight / LBS
44
Long Description
6 Grooves; 13.95" Outside Diameter; Bushed; SF Bushing Series; A | B Belt Series; 13.2" Pitch Minimum; 13.6" Pitch Maximum; 1/2 To 2-15/16" Bushing Bore Range; Keyway
Outside Diameter
13.95 Inch | 354.33 Millimeter
Pitch Diameter Maximum
13.6 Inch | 345.44 Millimeter
Bore
0 Inch | 0 Millimeter
Pitch Diameter Minimum
13.2 Inch | 335.28 Millimeter
Bushing Bore Range
1/2 To 2-15/16 Inch | 12.7 To 74.613 Millimeter
