554095 AC Motors

LEESON LEESON

101769.00

Description

10176900 ; .33HP 1725 208-230/460

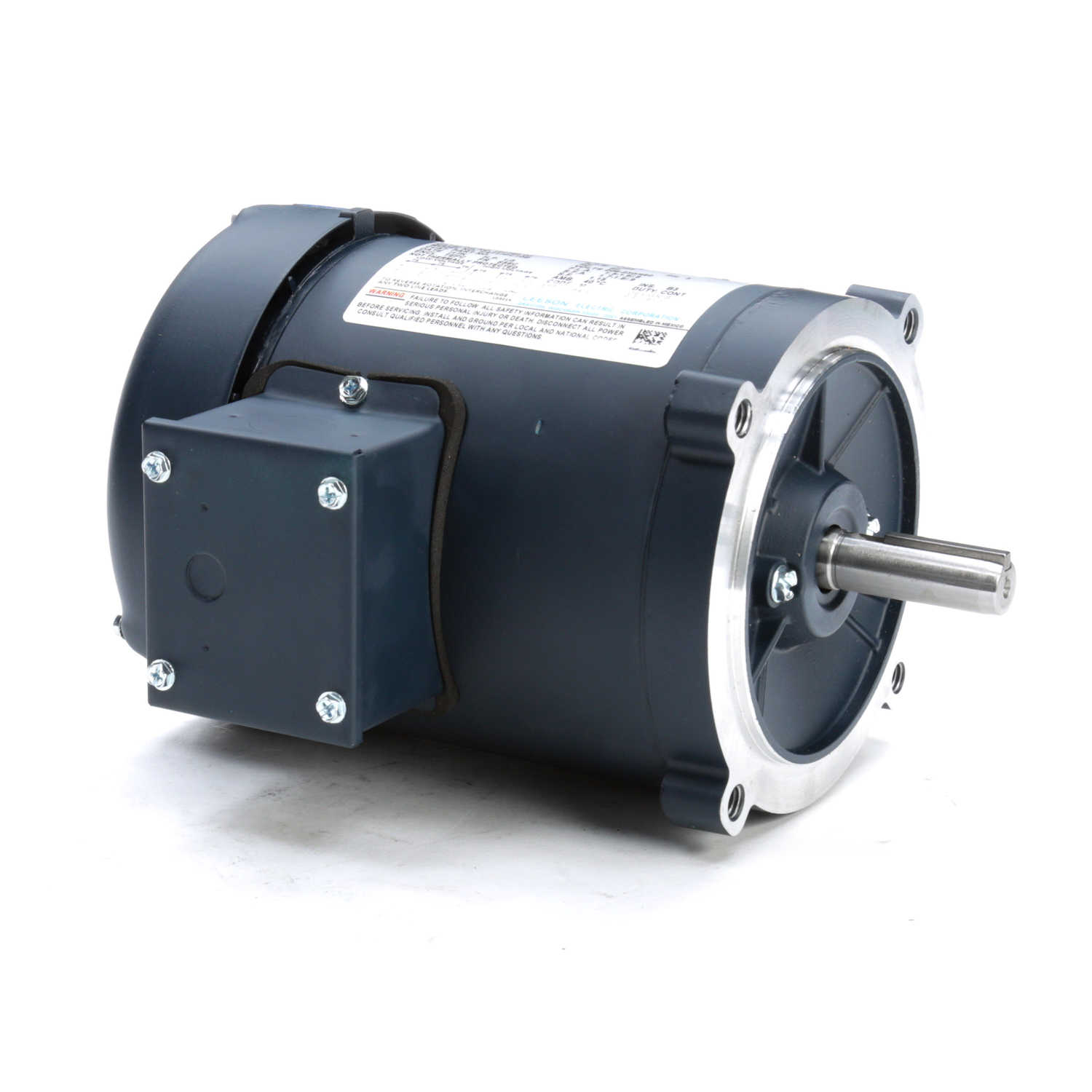

AC Motor; General Purpose; 1/3HP; S56C Frame Size; 1800 Sync RPM; 208-230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; C-Face; No Base; 5/8" Shaft Diameter; 9.69" Overall Length; 64.3% Efficiency Full Load

Part #

10176900

BDI #
554095

Details

355.52 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 355.52 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
AC Motors
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
9.08
EAN
0691720005989
Product Group - BDI
M04104
Horse Power
1/3HP
Frame Size
S56C
Hertz
60
Sync RPM
1800
Voltage
208-230/460
Current
AC
Phase
Three Phase
Enclosure
TEFC
Frame Profile
NEMA
Mounting Method
C-Face
Base
No
Efficiency Full Load
64.3
Inch - Metric
Inch
Other Features
Current Rating 1.5-1.6/0.8 Ampere | 4 Poles
Category - BDI
AC Motor
Harmonized Tariff Code
8501.51.60.40
Noun
Motor
Keyword String
Alternating Current General Purpose
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
101769.00
Manufacturer Internal Number
101769.00
Weight / LBS
16
Long Description
AC Motor; General Purpose; 1/3HP; S56C Frame Size; 1800 Sync RPM; 208-230/460 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; C-Face; No Base; 5/8" Shaft Diameter; 9.69" Overall Length; 64.3% Efficiency Full Load
Shaft Diameter
0.625 Inch | 15.875 Millimeter
Overall Length
9.69 Inch | 246.126 Millimeter
