19078163 AC Motors

MARATHON MOTORS MARATHON MOTORS

E507 ; 286TTGN16577

Description

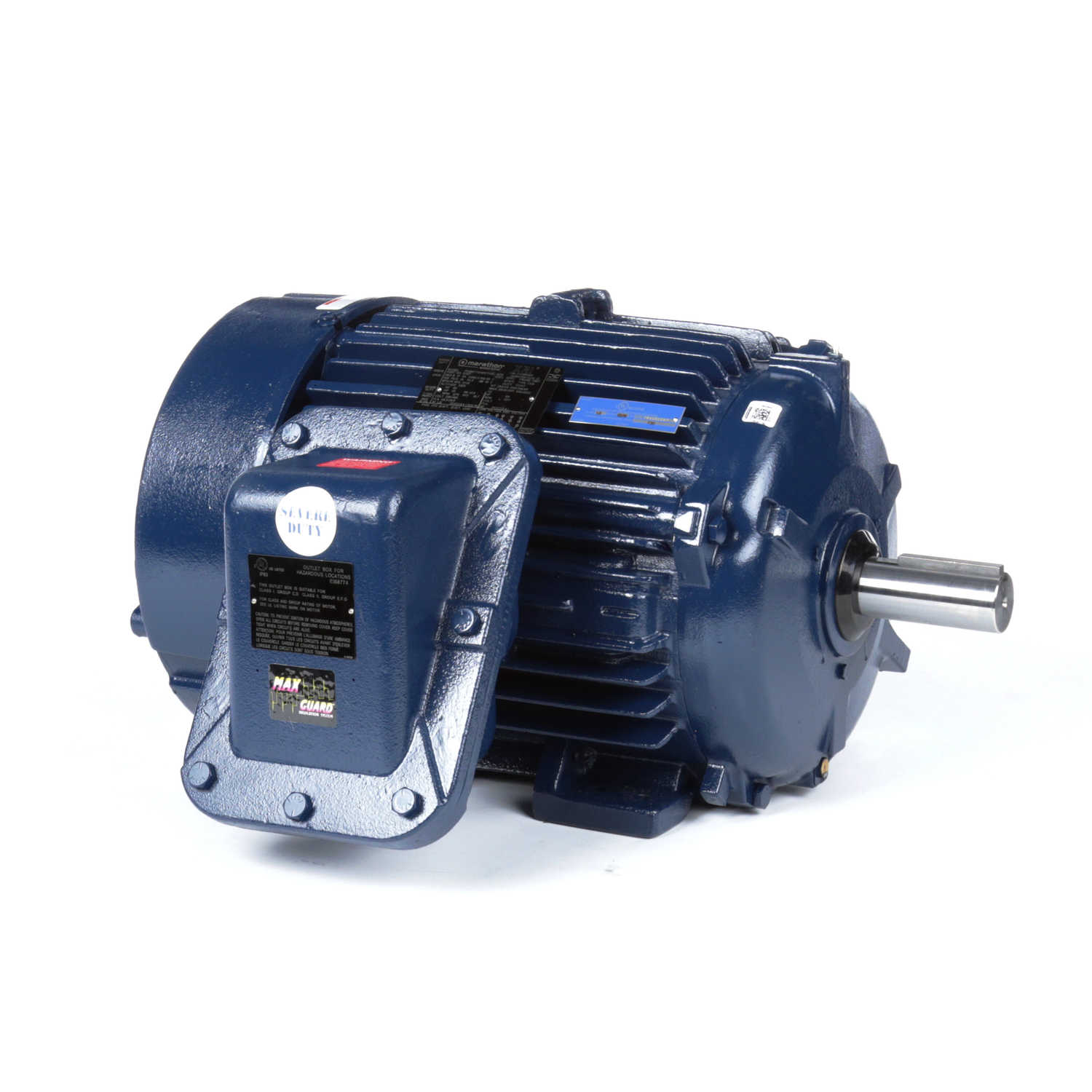

286TTGN16577 AC MOTOR ; 20HP 1200RPM EPFC 286T 3/60/230/460V

AC Motor; Multi Phase; 20HP; 286T Frame Size; 1200 Sync RPM; 230/460 Voltage; AC; EPFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 1-7/8" Shaft Diameter; 7" Base to Center of Shaft; 27.71" Overall Length; 91.7% Efficiency Full Load

Part #

E507 ; 286TTGN16577

BDI #
19078163

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
AC Motors
Brand
MARATHON MOTORS
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
14.074
EAN
0722856023483
Product Group - BDI
M04104
Horse Power
20HP
Frame Size
286T
Hertz
60
Sync RPM
1200
Voltage
230/460
Current
AC
Phase
Three Phase
Enclosure
EPFC
Frame Profile
NEMA
Mounting Method
Rigid
Base
Yes
Efficiency Full Load
91.7
Inch - Metric
Inch
Other Features
Current Rating 53.5/26.8 Ampere | 6 Poles
Category - BDI
AC Motor
Harmonized Tariff Code
8501.51.60.40
Noun
Motor
Keyword String
Alternating Current Multi Phase
Manufacturer URL
https://www.regalrexnord.com
Manufacturer Item Number
286TTGN16577
Manufacturer Internal Number
286TTGN16577
Weight / LBS
593
Long Description
AC Motor; Multi Phase; 20HP; 286T Frame Size; 1200 Sync RPM; 230/460 Voltage; AC; EPFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 1-7/8" Shaft Diameter; 7" Base to Center of Shaft; 27.71" Overall Length; 91.7% Efficiency Full Load
Base to Center of Shaft
7 Inch | 177.8 Millimeter
Overall Length
27.71 Inch | 703.834 Millimeter
Shaft Diameter
1.875 Inch | 47.625 Millimeter
