Back to search results
20180982 AC motors

LEESON LEESON

120946.00

Description

LEESON 120946.00

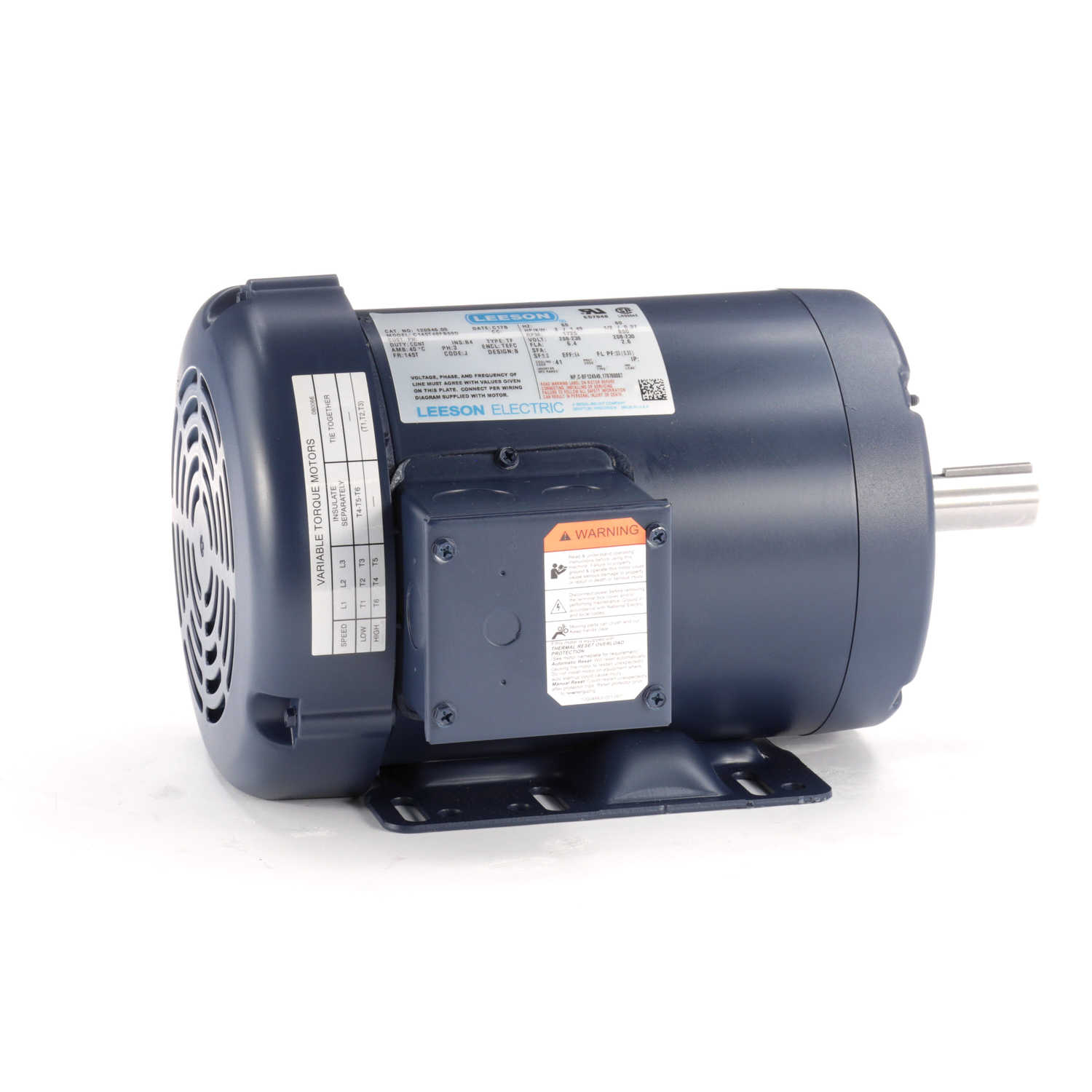

AC Motor; Multi Speed; 1/2 | 2HP; 145T Frame Size; 1800/900 Sync RPM; 208-230 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 7/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 12.43" Overall Length; 64% Efficiency Full Load

Part #

120946.00

BDI #
20180982

Details

2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price Request A Price BDIExpress
QTY

Inventory

Total: Available to order

Category
AC motors
Brand
LEESON
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
EAN
0691720016350
Weight / US pound
0.01
Product Group - BDI
M04104
Konjska snaga
1/2 | 2HP
Veličina okvira
145T
Herc
60
Sinhroni o/min
1800/900
Napon
208-230
Struja
AC
Faza
Three Phase
Kućište
TEFC
Profil okvira
NEMA
Način montiranja
Rigid
Baza
Yes
Efikasnost punog opterećenja
64
Inčni - metrički
Inch
Ostale karakteristike
Current Rating 6.4 Ampere | 4 Poles
Kategorija - BDI
AC Motor
Harmonizovana carinska šifra
8501.51.60.40
Imenica
Motor
Niz ključnih reči
Alternating Current Multi Speed
URL proizvođača
https://www.regalrexnord.com
Broj artikla proizvođača
120946.00
Interni broj proizvođača
120946.00
Težina / lbs
38
Duži opis
AC Motor; Multi Speed; 1/2 | 2HP; 145T Frame Size; 1800/900 Sync RPM; 208-230 Voltage; AC; TEFC Enclosure; NEMA Frame Profile; Three Phase; 60 Hertz; Rigid; Base; 7/8" Shaft Diameter; 3-1/2" Base to Center of Shaft; 12.43" Overall Length; 64% Efficiency Full Load
Prečnik vratila
0.875 inč | 22.225 milimetar
Baza do ose vratila
3.5 inč | 88.9 Millimeter
Ukupna dužina
12.43 inč | 315.722 milimetar
