SY7120-5DZD-C8 https://www.bdiexpress.com/medias/INDSMCVALVEX-SY7120-D-C8-DC-300x300.jpg?context=bWFzdGVyfHJvb3R8MjU0NzJ8aW1hZ2UvanBlZ3xhR1l5TDJnMlppOHhNREF5TVRBeU1UQTRPVGd5TWk5SlRrUlRUVU5XUVV4V1JWaGZVMWszTVRJd1gwUmZRemhmUkVOZk16QXdlRE13TUM1cWNHY3xlY2E4MDI2MDg5NThjYWNiOTk1N2YzZGYwY2Q0MmQyNTdlZTU0YzU4YjgyNTZhYjAzMGMxYTFiN2RhYzEwMGU3
Back to search results
17867618 Hydraulic and Pneumatic Valves

SMC SMC

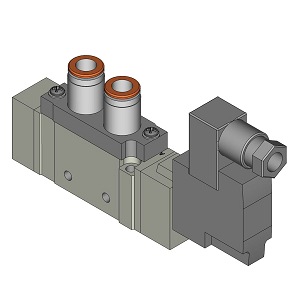

SY7120-5DZD-C8

Description

SY7120-5DZD-C8 ; VALVE SGL SOL BODY PT DIN

Solenoid Valve; 8 MM Tubing OD Port; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum

Part #

SY7120-5DZD-C8

BDI #
17867618

Details

153.27 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 153.27 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0.179
Product Group - BDI
F02352
Valve Type
Solenoid
Port Type
8 MM Tubing OD
Number of Ports/Way
5 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid - Air Pilot | Air Pilot Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
22 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Aluminum
Inch - Metric
Metric
Other Features
0.77/0.82 Cv Factor | Air Fluid | Body Ported | Internal Pilot | Push-Turn Locking Slotted Type Manual Override | DIN Terminal with Connector | With Light/Surge Voltage Suppressor | One Touch Fitting | In/Out Position
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.395
Long Description
Solenoid Valve; 8 MM Tubing OD Port; 5 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid - Air Pilot | Air Pilot Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Aluminum
Overall Length
5.083 Inch | 129.1 Millimeter
Overall Height
2.598 Inch | 66 Millimeter
Overall Width
0.78 Inch | 19.8 Millimeter
