331375 Sheaves - Fixed Pitch

BROWNING BROWNING

25V1600SF

Description

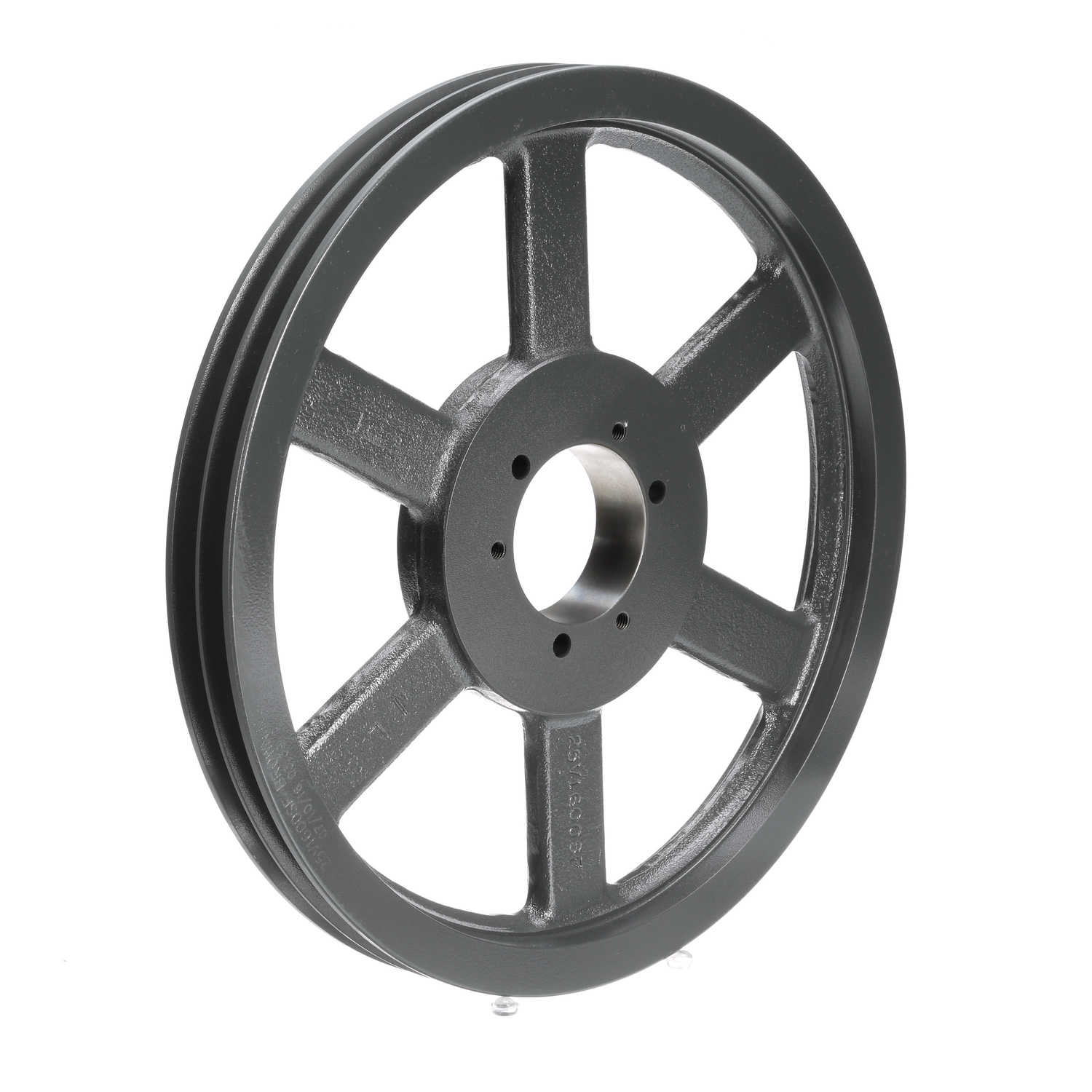

25V1600SF ; QD 358 SHEAVE

2 Grooves; 16" Outside Diameter; Bushed; SF Bushing Series; 5V Belt Series; 15.9" Pitch Minimum; 15.9" Pitch Maximum; 1/2 To 2-15/16" Bushing Bore Range; Keyway

Part #

1065721

BDI #
331375

Details

712.94 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 712.94 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Sheaves - Fixed Pitch
Brand
BROWNING
Manufacturer Name
REGAL BELOIT
Minimum Buy Quantity
N/A
Weight / Kilogram
13.26
EAN
0662289353439
Product Group - BDI
M02350
Number of Grooves
2
Mounting Method
Bushed
Bushing Size
SF
Belt Series
5V
Keyway Yes/No
Yes
Minimum Plain Bore
No
Other Features
QD Bushing | Arm Style | Type D3
Inch - Metric
Inch
Category - BDI
Sheave - Fixed Pitch
Harmonized Tariff Code
8483.50.90.40
Noun
Pulley
Keyword String
Transmission
Manufacturer URL
https://www.regalbeloit.com
Manufacturer Item Number
25V1600SF
Manufacturer Internal Number
1065721
Weight / LBS
29.2
Long Description
2 Grooves; 16" Outside Diameter; Bushed; SF Bushing Series; 5V Belt Series; 15.9" Pitch Minimum; 15.9" Pitch Maximum; 1/2 To 2-15/16" Bushing Bore Range; Keyway
Pitch Diameter Maximum
15.9 Inch | 403.86 Millimeter
Bore
0 Inch | 0 Millimeter
Pitch Diameter Minimum
15.9 Inch | 403.86 Millimeter
Bushing Bore Range
1/2 To 2-15/16 Inch | 12.7 To 74.613 Millimeter
Outside Diameter
16 Inch | 406.4 Millimeter
