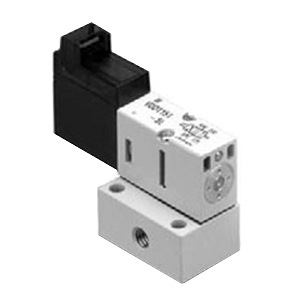

VQD1151U-5L-M5 https://www.bdiexpress.com/medias/INDSMCVALVEX-VQD1151-L-M5-300x300.jpg?context=bWFzdGVyfHJvb3R8MjE0NTZ8aW1hZ2UvanBlZ3xhRFV5TDJnM1pTOHhNREF5TVRreU1qYzJOamczT0M5SlRrUlRUVU5XUVV4V1JWaGZWbEZFTVRFMU1WOU1YMDAxWHpNd01IZ3pNREF1YW5CbnxlZGQxNGU3OGZlZDNkMjI2NGRiYTQ0MjU1MTA0ZDMzYzg1NGU5M2ZhZjRmOGEyNTExZTc4ODIyYWQ3YTUyODZj
17877792 Hydraulic and Pneumatic Valves

SMC SMC

VQD1151U-5L-M5

Description

VQD1151U-5L-M5 ; VALVE SOL

Poppet Valve; M5 Port; 4 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid | Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc

Part #

VQD1151U-5L-M5

BDI #
17877792

Details

88.47 CAD 2099-12-31 http://schema.org/NewCondition http://schema.org/InStock Your Price $ 88.47 / each BDIExpress
QTY

Inventory

Total: 5

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0.055
Product Group - BDI
F02352
Valve Type
Poppet | Solenoid
Port Type
M5
Number of Ports/Way
4 Port | 4 Way
Number of Positions
2 Position
Actuation
Solenoid | Spring Return
Voltage
24 VDC
Media
Pneumatic
Maximum Pressure
102 PSI
Operating Pressure Range
0 To 102 PSI
Operating Temperature Range
14 To 122 Deg F
Seal Type
Rubber
Body Material
Zinc
Inch - Metric
Metric
Other Features
0.07 - 0.07 Cv Factor | For Air/Inert Gas | Base Mounted | With Sub Plate | Large Flow
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.60
Noun
Valve
Keyword String
Poppet Solenoid
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.12202
Long Description
Poppet Valve; M5 Port; 4 Port | 4 Way; 2 Position; 24 VDC; Pneumatic; Solenoid | Spring Return; 102 PSI; 14 To 122 Deg F; Rubber Seal; Zinc
Overall Length
1.929 Inch | 49 Millimeter
Overall Width
0.689 Inch | 17.5 Millimeter
Overall Height
1.693 Inch | 43 Millimeter
