VM830-F01-13 https://www.bdiexpress.com/medias/INDSMCVALVEX-VM830-01-13-300x300.jpg?context=bWFzdGVyfHJvb3R8MjExODR8aW1hZ2UvanBlZ3xhRGs0TDJnMFpDOHhNREF5TWpJek1Ea3hOekUxTUM5SlRrUlRUVU5XUVV4V1JWaGZWazA0TXpCZk1ERmZNVE5mTXpBd2VETXdNQzVxY0djfDNiYmQyZjJlNDE2MDQ3YjQwYjczYTY4MjMxMWU0MmU3ZDFhZTJmMDcwOTE2ZjNhOGI1ZWYwYmUyYmQyYmNkOGQ
17874334 Hydraulic and Pneumatic Valves

SMC SMC

VM830-F01-13

Description

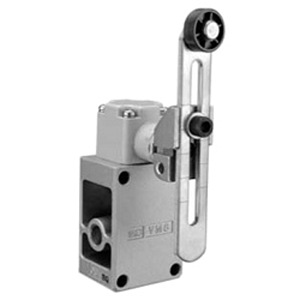

VM830-F01-13 ; VALVE ROLLER

Mechanical Valve; 1/8" G Port; 3 Port | 3 Way; 2 Position; Pneumatic; Adjustable Roller Lever | Spring Return; 145 PSI; 23 To 140 Deg F; Aluminum

Part #

VM830-F01-13

BDI #
17874334

Details

140.13 CAD 2099-12-31 http://schema.org/NewCondition https://schema.org/LimitedAvailability Your Price $ 140.13 / each BDIExpress
QTY

Inventory

Total: Available to order

Category
Hydraulic and Pneumatic Valves
Brand
SMC
Manufacturer Name
SMC
Minimum Buy Quantity
N/A
Weight / Kilogram
0.256
Product Group - BDI
F02352
Valve Type
Mechanical
Port Type
1/8" G
Number of Ports/Way
3 Port | 3 Way
Number of Positions
2 Position
Actuation
Adjustable Roller Lever | Spring Return
Voltage
Not Applicable
Media
Pneumatic
Maximum Pressure
145 PSI
Operating Pressure Range
-15 To 145 PSI
Operating Temperature Range
23 To 140 Deg F
Body Material
Aluminum
Inch - Metric
Inch
Other Features
Body Ported
Category - BDI
Hydraulic and Pneumatic Valve
Harmonized Tariff Code
8481.20.00.80
Noun
Valve
Keyword String
Mechanical
Manufacturer URL
https://www.smcpneumatics.com
Weight / LBS
0.56374
Long Description
Mechanical Valve; 1/8" G Port; 3 Port | 3 Way; 2 Position; Pneumatic; Adjustable Roller Lever | Spring Return; 145 PSI; 23 To 140 Deg F; Aluminum
Overall Length
1.575 Inch | 40 Millimeter
Overall Width
2.638 Inch | 67 Millimeter
Overall Height
4.673 Inch | 118.7 Millimeter
